The subsurface profile in Garden Grove is dominated by alluvial deposits from the Santa Ana River, with interbedded layers of silty sand and soft clay extending to depths of 15–20 m. These materials are often loose or saturated near the water table, which sits at about 3–4 m below grade across most of the city. When we need to recover intact specimens that preserve the natural fabric and moisture content, we rely on Shelby tube undisturbed sampling. The thin-walled tube minimizes disturbance during advancement, giving us core samples suitable for triaxial testing or consolidation analysis. Before deploying the tube, we often run a borehole with SPT to identify the exact target depth and avoid collapsing zones near the phreatic surface.
Shelby tube sampling preserves the in-situ structure and water content of soft alluvial soils, which is essential for reliable consolidation and strength parameters in Garden Grove.
Methodology and scope
Garden Grove covers roughly 18 square miles and sits at an elevation of about 27 m above sea level, placing it in Seismic Zone D per ASCE 7-16. That classification demands high-quality undisturbed samples for site-specific response analysis. Our Shelby tube procedure follows ASTM D1587-15, using a 3-inch OD thin-wall sampler with a fixed piston to reduce suction effects. We advance the tube hydraulically at a controlled rate of 1–2 ft/min, then seal both ends with wax immediately after extraction. For soft clay layers below the water table, we combine this method with a vane shear test to cross-check undrained shear strength in real time. The entire chain from extraction to transport to the lab follows strict moisture-loss protocols.

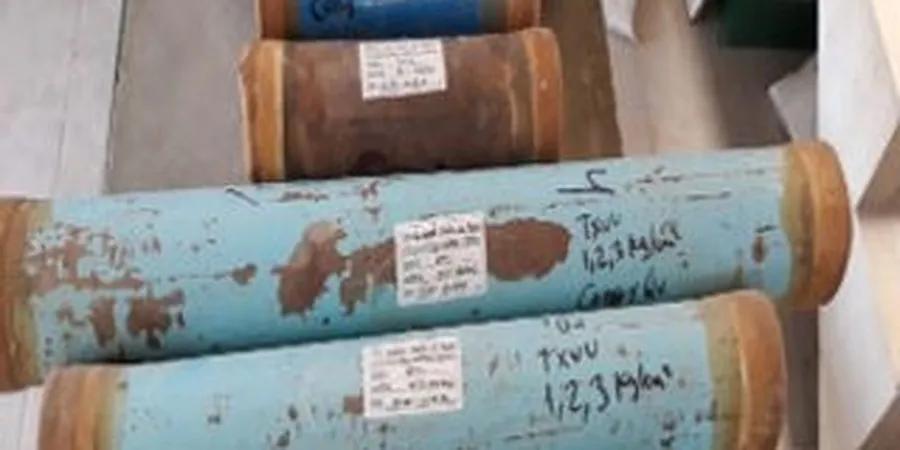

Technical reference image — Garden Grove
Local considerations
A common mistake we see among contractors in Garden Grove is assuming that blow counts from SPT alone can replace undisturbed sampling for settlement analysis. In the soft to medium-stiff clays of the 405 corridor, that shortcut leads to overestimating bearing capacity by 30–50%. Without a Shelby tube specimen for oedometer testing, the compression index and pre-consolidation pressure remain unknown. That gap becomes critical when designing shallow foundations or floor slabs on the east side of the city, where desiccated crust overlies compressible silt layers.
One-dimensional consolidation tests on undisturbed Shelby tube specimens to determine Cc, Cv, and pre-consolidation pressure for settlement calculations.
02
Triaxial Compression
UU and CU triaxial tests on intact samples recovered from Garden Grove boreholes, following ASTM D2850-15 for undrained strength parameters.
03
Soil Classification & Index
Afterberg limits, natural moisture content, and unit weight measured on the same tube specimens, used to correlate with N-values from adjacent SPT intervals.
How deep can a Shelby tube sample reach in Garden Grove?
In practice we retrieve undisturbed samples from depths between 3 m and 20 m. The limiting factor is the stiffness of the soil — once the material becomes very dense sand or stiff clay (N > 20–25), the thin-walled tube may buckle or refuse to advance. For those strata we switch to piston samplers or rock coring methods.
What is the advantage of Shelby tube sampling over SPT for clay layers?
SPT produces a disturbed sample that cannot be used for consolidation or triaxial tests. Shelby tube sampling preserves the natural structure, void ratio, and water content of the clay. That means we can run reliable one-dimensional consolidation tests and obtain realistic pre-consolidation pressures for foundation design in Garden Grove's compressible alluvium.
Do you need to stabilize the borehole before sampling below the water table?
Yes. When the water table is at 3–4 m, we use drilling mud or a temporary casing to prevent inflow and caving. The mud weight must be low enough not to fracture the formation but high enough to hold the bore wall. We also run a short SPT interval immediately above the target depth to confirm the material consistency.
What is the typical turnaround time for results from a Shelby tube sample in Garden Grove?
From field extraction to final lab report, expect 5–7 business days for standard consolidation and triaxial testing. If you need phase relationships and classification only, we can deliver those results within 3 business days. Expedited service is available for critical path items.
