A field crew deploys a track-mounted rig with a 140-pound hammer to perform Standard Penetration Tests across Garden Grove. The rig advances a 2-inch split-barrel sampler at 5-foot intervals. Each blow count is recorded per ASTM D1586-18. This data feeds directly into our raft/mat foundation design. We compare blow counts against local boring logs from Orange County Water District archives. The team also retrieves undisturbed tube samples for lab consolidation tests. All field work follows the 2021 California Building Code seismic requirements. Garden Grove sits on deep alluvial deposits from the Santa Ana River. These soils range from silty sands to stiff clays. Understanding this variability is critical before pouring a single cubic yard of concrete. A proper raft design distributes column loads across a wide footprint. That reduces differential settlement risks in these valley floor sediments.
A 3-foot thick raft on overconsolidated clay and dense sand can limit differential settlement to under 0.75 inches in Garden Grove.
Methodology and scope
A 6-story mixed-use project on Harbor Boulevard required a raft foundation to bridge soft clay lenses. The structural engineer specified a 3-foot thick mat with top and bottom reinforcement grids. Our role was verifying bearing capacity and expected settlement under the proposed 2,200 psf loading. We ran one-dimensional consolidation tests on Shelby tube samples from three boring locations. Those tests showed the clay had an overconsolidation ratio near 2.0 in the upper 15 feet. Deeper sands exhibited corrected SPT N-values above 40. This combination allows a raft foundation to perform well. We cross-checked our calculations with a finite element model in Plaxis 3D. The model confirmed maximum differential settlement under 0.75 inches. For sites with looser sands, we often recommend a complementary licuefaccion assessment. If the subsurface shows soft clay layers thicker than 10 feet, a precarga schedule might precede the raft pour. In cases where bearing capacity is borderline, adding pilotes under the mat creates a piled-raft hybrid that handles higher loads efficiently. Each site in Garden Grove presents a unique soil profile. That is why we never rely on generic table values alone.

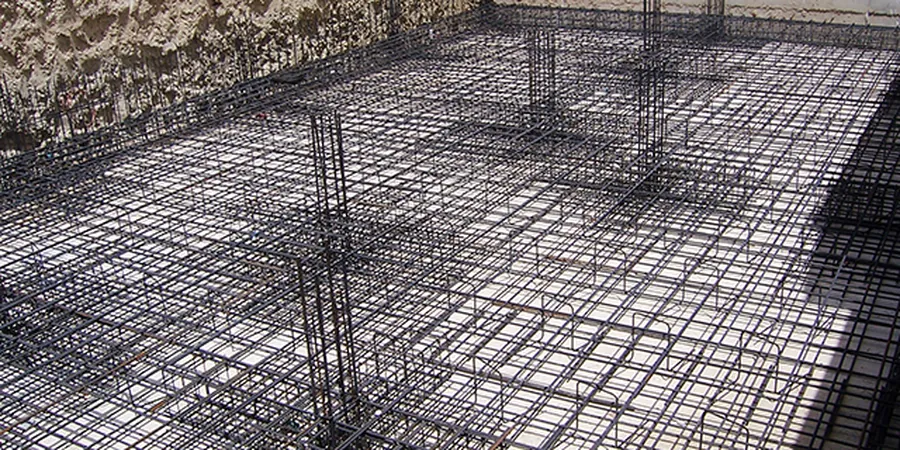

Technical reference image — Garden Grove
Local considerations
In Garden Grove, the primary risk in raft foundation design comes from the variable thickness of soft alluvial clay. Many lots have a 5 to 15-foot layer of compressible silt and clay over dense sand. If the raft is sized without accounting for this clay, the foundation can experience long-term consolidation settlement exceeding 2 inches. That pulls the slab downward unevenly. Cracks appear in partition walls and floor finishes. Another risk is liquefaction in loose saturated sands during a major seismic event. The 1933 Long Beach earthquake damaged several buildings in this area. We always run a site-specific liquefaction analysis using Youd-Idriss 2001 methodology. Mitigation options include soil improvement or thickening the mat to bridge liquefied zones.
We drill borings to depths of 30 to 60 feet using a truck-mounted rig. Every 5 feet we perform an SPT per ASTM D1586. Samples are logged and stored for lab testing. We deliver a borelog with N-values and soil classification.
02
Consolidation and Settlement Analysis
One-dimensional consolidation tests (ASTM D2435) on undisturbed samples measure preconsolidation pressure and compression index. We compute immediate and long-term settlement under raft loads. Results include time-rate curves for construction scheduling.
03
Seismic Site Response and Liquefaction Screening
We evaluate Garden Grove site soil profiles using NCEER-based liquefaction triggers and NEHRP site class. Output includes factor of safety against liquefaction, expected settlement, and recommendations for mat thickness or ground improvement.
Applicable standards
ASCE 7-22 (Minimum Design Loads and Risk Category), 2021 California Building Code (Chapter 18 Soils and Foundations), ASTM D1586-18 (Standard Penetration Test), ASTM D2435-04 (One-Dimensional Consolidation)
Frequently asked questions
What is the typical thickness of a raft foundation in Garden Grove?
For most mid-rise projects on alluvial soils, raft thickness ranges from 24 to 48 inches. The exact value depends on column spacing, load magnitude, and the bearing capacity of the underlying sand or clay. Our geotechnical report recommends a specific thickness after settlement checks.
How much does a raft/mat foundation design study cost in Garden Grove?
The cost for a complete geotechnical investigation and raft design report typically ranges between US$1,060 and US$3,660. This includes field drilling, lab testing, settlement analysis, and a written report with foundation recommendations. Prices vary with project scope and number of borings.
When should I choose a raft foundation over individual footings?
A raft foundation is preferred when soil bearing capacity is low or variable, or when column loads are heavy and closely spaced. It also works well for sites with a shallow water table or moderate liquefaction risk. In Garden Grove, rafts are common for 4- to 8-story buildings on soft alluvium.
Does a raft foundation work in liquefiable soils?
Yes, but with limitations. A thick, stiff raft can bridge small liquefied zones and reduce differential settlement. If the liquefiable layer is thick or continuous, we typically recommend ground improvement like deep soil mixing or stone columns before placing the raft. A site-specific liquefaction analysis is mandatory.
