A common mistake we see among contractors in Garden Grove is assuming the native soils are uniform across the city. The geology here shifts from alluvial deposits near the Santa Ana River to older terrace formations toward the north. Without a proper subgrade evaluation, you risk differential settlement and premature cracking. That is why a site-specific road subgrade design is essential before placing any pavement section. We combine on-site sampling with laboratory testing to determine the California Bearing Ratio (CBR) and classify the soil according to the Unified Soil Classification System (USCS). This gives us a reliable basis for thickness design and compaction specifications, saving you from expensive repairs down the line. When the soil is marginal, we often recommend a geocell reinforcement layer to improve load distribution and reduce subgrade stress.
A subgrade with a CBR below 3 usually requires mechanical stabilization or a geosynthetic reinforcement layer before pavement construction.
Methodology and scope
Our field team typically mobilizes with a track-mounted drill rig or a backhoe for test pits, depending on access and depth requirements. For road subgrade design in Garden Grove, we start with a series of test pits to log soil strata and collect bulk samples for CBR and Proctor testing in the lab.
Soil classification per ASTM D2487 to verify expansive or collapsible behavior.
Compaction reference curves from standard Proctor (ASTM D698) to set field density targets.
Soaked and unsoaked CBR values to simulate worst-case moisture conditions after rain.
In areas with high groundwater, we also assess drainage conditions and may incorporate a capillary break layer. For projects where the subgrade is particularly weak, we integrate a vibrocompaction program to densify the soil before placing fill. This approach has proven effective for industrial access roads and residential street upgrades across Orange County.

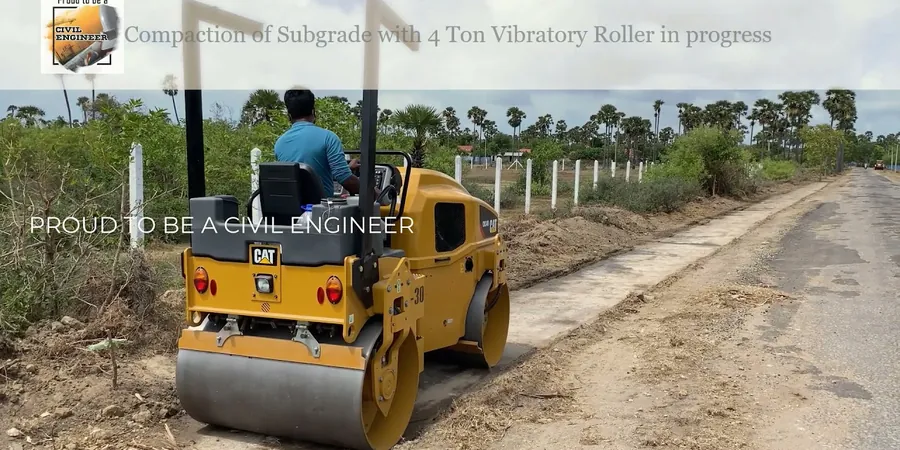

Technical reference image — Garden Grove
Local considerations
The California Building Code (CBC) and ASCE 7 require that the subgrade be characterized for both strength and volumetric stability. In Garden Grove, the presence of expansive clay lenses in the older terrace deposits poses a real risk to thin pavements. If the design ignores the swell potential, you can end up with heave cracks in the first year. We always run Atterberg limits and expansion index tests on suspect layers. When the plasticity index exceeds 20, we recommend a chemical stabilization treatment or a thicker granular base to isolate the pavement from the active zone. Skipping this step is a gamble that rarely pays off — the cost of a mid-life overlay is many times the initial investigation.
What is the typical CBR value for Garden Grove subgrade soils?
For the alluvial deposits common in Garden Grove, soaked CBR values typically fall between 3 and 10. Older terrace soils can range from 5 to 15. We always test site-specific samples because the variability within a single project area can be significant.
How does the road subgrade design differ for residential vs. arterial streets?
Residential streets usually carry lighter loads and can tolerate a lower subgrade modulus, but they are more sensitive to differential settlement. Arterial roads require a higher design CBR and a thicker pavement section to handle repeated heavy truck traffic. We tailor the design traffic number and structural number accordingly.
Do you perform the subgrade investigation before or after site grading?
Ideally, we do the investigation after rough grading is complete but before the subgrade is fine-graded. That way we test the actual compacted fill, not the original ground. If we test too early, the results may not reflect the final condition. We coordinate the schedule with your earthwork contractor.
What is the cost range for a road subgrade design study in Garden Grove?
For a typical residential street project, the cost ranges between US$1,100 and US$3,050, depending on the number of test pits, laboratory tests required, and the complexity of the pavement design. We provide a fixed-price proposal after reviewing the project scope.
