In Garden Grove we often find soils that transition abruptly from sandy alluvium to stiff clay layers within the same borehole. The surface typically shows silty sands (SM) from the Santa Ana River deposits, but below 10 feet you may hit fat clays (CH) with high plasticity. This variability makes proper soil classification (USCS/AASHTO) essential before any foundation design. Without it, you risk misinterpreting bearing capacity or settlement behavior. We classify every sample following ASTM D2487-17 and AASHTO M 145, using visual-manual procedures plus Atterberg limits and grain-size analysis when needed. The result is a reliable group symbol and group name that guides your structural engineer. For deeper profiles we often pair this with an ensayo SPT to correlate blow counts with consistency in cohesive layers. That combination gives a complete picture of subsurface conditions across your lot.
The USCS group symbol is not a luxury — it is the first filter for bearing capacity, settlement, and seismic site class.
Methodology and scope
A typical project near Garden Grove Boulevard and Euclid Street involved a three-story commercial building on a 0.5-acre site. We drilled four borings and recovered split-spoon samples every 5 feet. Each sample was logged in the field for color, moisture, and plasticity, then transported to the lab for full classification. The lab work included sieve analysis, hydrometer, and Atterberg limits to assign both USCS and AASHTO designations. For the sandy layers we identified SP-SM (poorly graded sand with silt) and for the deeper clays we found CH with liquid limits above 60. These results directly informed the foundation type and slab thickness. When the soil contains cobbles or gravel, we also recommend a granulometria test to refine the gradation curve. The final report includes the classification table, plasticity chart, and a brief interpretation for the geotechnical engineer.

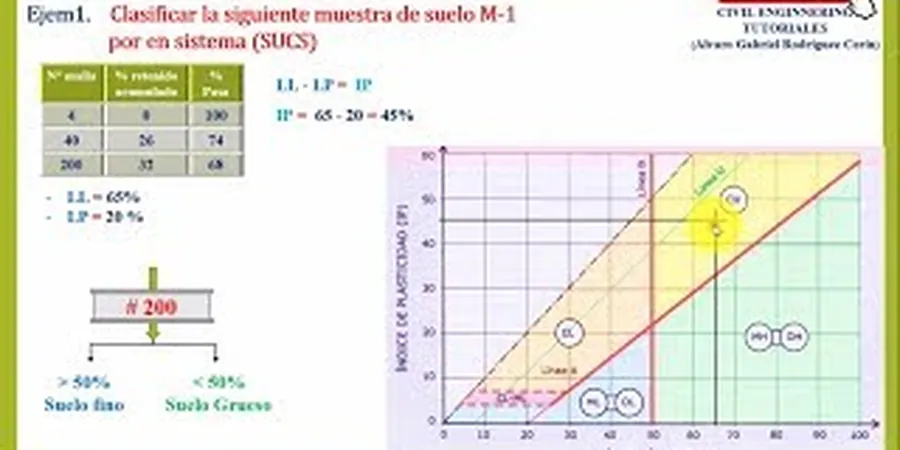

Technical reference image — Garden Grove
Local considerations
Soils near the Westminster Avenue corridor in west Garden Grove behave differently than those near Harbor Boulevard in the east. The western area has thicker sequences of loose silty sands (SM) that can liquefy under strong shaking, while the east has more fat clays (CH) that shrink and swell with seasonal moisture. Without proper soil classification (USCS/AASHTO), you might design a shallow foundation on what looks like sand but actually has high plasticity clay underneath. That mismatch leads to differential settlement or, worse, foundation rotation. We have seen cases where the contractor assumed a uniform sand profile based on one test pit near the street, only to find stiff clay at the far end of the building pad. A full classification program across the site catches these lateral changes. It also feeds directly into the seismic site class per ASCE 7, which affects the entire structural design.
Includes visual-manual identification, sieve analysis (coarse fraction), hydrometer (fine fraction), and Atterberg limits. Delivered with group symbol, group name, AASHTO group index, and a summary table. Typical turnaround is 5–7 business days from sample receipt. Suitable for residential, commercial, and public works projects.
02
Rapid Field Classification (Visual-Manual with Key Tests)
For quick assessments or preliminary screening. A geologist logs the samples on site using ASTM D2488 (visual-manual), then performs a reduced lab suite (only No. 200 wash and PI) to confirm the USCS group. Ideal for early design phases or large subdivision layouts where dozens of borings need a first-pass classification.
Applicable standards
ASTM D2487-17 – Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System), AASHTO M 145-91 (2021) – Classification of Soils and Soil-Aggregate Mixtures for Highway Construction Purposes, ASTM D4318-17 – Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils, ASTM D6913/D7928 – Standard Test Methods for Particle-Size Distribution (Gradation) of Soils, IBC 2021 – Section 1803, Geotechnical Investigations (references USCS for site class)
Frequently asked questions
What is the difference between USCS and AASHTO soil classification?
Both systems group soils by grain size and plasticity, but they serve different purposes. USCS (ASTM D2487) is the standard for geotechnical engineering — it uses a letter symbol (e.g., SM, CH) and a group name such as 'silty sand with gravel'. AASHTO M 145 is used primarily for highway and pavement design; it assigns an A-group (A-1 through A-7) plus a group index that reflects the material's suitability as subgrade. For a foundation project in Garden Grove, most engineers rely on the USCS symbol, while the AASHTO classification is added when pavement design is involved.
How much does a soil classification test cost in Garden Grove?
The typical cost ranges from US$60 to US$110 per sample for a full classification (sieve, hydrometer, Atterberg limits, and final report). The exact price depends on the number of samples, whether you need both USCS and AASHTO, and if the samples require extra work like organic content or carbonate tests. For a standard residential project with 3–5 samples, expect a total in the lower end of that range. Volume discounts apply for larger subdivisions.
Can you classify soils from existing boreholes or test pits?
Yes, we can classify disturbed and undisturbed samples from any source. You just need to provide the sample bags or tubes with proper labeling (depth, boring ID, date). We log the sample condition, perform the visual-manual description, and then run the lab tests to assign the USCS group symbol and AASHTO group. This is common when a developer takes over an existing geotechnical report and wants to verify the soil types before final design. Turnaround is the same as for new samples — typically 5 business days.
How does soil classification affect seismic design in Garden Grove?
The 2021 IBC and ASCE 7 use the soil profile type (Site Class A through F) to determine seismic design parameters. Site Class is based on vs30/" data-interlink="1">shear wave velocity, standard penetration resistance (N-value), or undrained shear strength. But the USCS classification is often the first indicator of Site Class. For example, loose silty sands (SM) with low N-values typically map to Site Class D or E, while stiff clays (CH) with high strength may fall into Site Class C. A correct USCS classification helps the structural engineer select the appropriate spectral acceleration values and design the foundation for the actual ground motion expected in Garden Grove.
