Road Geotechnics for Pavement and Subgrade Design in Garden Grove

Garden Grove sits on deep alluvial deposits from the Santa Ana River, with sandy and silty layers extending well below the water table. For any pavement project here, the real challenge is not the traffic load alone but the subgrade variability across the city. We have seen roads crack within two years simply because the design assumed uniform soil conditions. A proper geotechnical investigation for road design must start with test pits and borings to map those changes. Before placing any fill, we run a CBR test on undisturbed samples to get the true bearing capacity. That number drives the pavement thickness, not a table from a manual. Once we know the subgrade modulus, we can design flexible or rigid pavements that actually last in Garden Grove's climate.

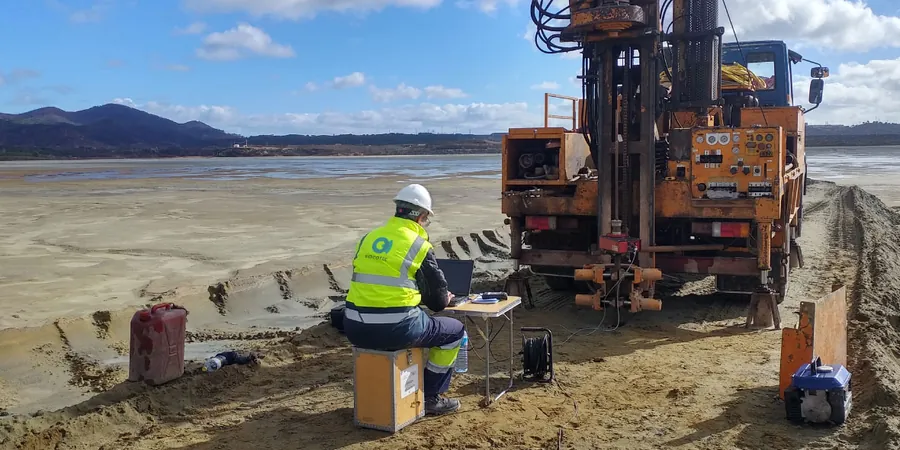

Illustrative image of Geotecnia vial in Garden Grove

The subgrade modulus in Garden Grove can vary by a factor of three within a single block, making localized investigation non-negotiable.

Methodology and scope

Garden Grove grew rapidly in the 1950s and 1960s, and much of the original pavement was built on unprepared subgrade. Today we see the consequences: differential settlement, alligator cracking, and failed utility trenches. The city sits in Seismic Zone 4 per IBC, so dynamic loads from earthquakes compound the static traffic loads. Our investigation for road projects includes soil classification per ASTM D2487, Proctor compaction per ASTM D698, and soaked CBR per ASTM D1883. We also evaluate the groundwater depth, which in some areas is only 3 to 5 feet below grade. That shallow water table softens the subgrade and reduces its strength significantly. For deeper fills we recommend a terraplén vial with controlled compaction lifts and moisture conditioning. The combination of seismic risk and high groundwater makes Garden Grove a unique environment for pavement design.

Local considerations

Compare a site near the 405 Freeway with one closer to the Garden Grove Park. The freeway corridor has older fills and buried utilities that create soft spots. The park area sits on natural silty sands with better drainage. The biggest risk in Garden Grove is assuming uniform subgrade across a project. We have seen a parking lot where one end had CBR of 3% and the other 12%, yet the pavement was designed uniform. That lot failed in two years. Another common risk is building pavement over undocumented fill from the 1960s. Those fills often contain organic debris and settle unpredictably. A thorough geotechnical investigation with borings every 200 to 300 feet along the alignment can catch these issues before the asphalt goes down.

Technical parameters

Parameter	Typical value
Standard Penetration Test (SPT) N-value	4 to 25 blows/ft (typical)
California Bearing Ratio (CBR) soaked	2% to 15% depending on layer
Maximum Dry Density (Standard Proctor)	105 to 125 pcf
Optimum Moisture Content	10% to 18%
Groundwater Depth	3 to 8 ft below grade
Unified Soil Classification	SP, SM, ML, CL (most common)

Associated technical services

Subgrade Investigation and CBR Testing

We drill borings and dig test pits to obtain undisturbed samples. Then we run soaked CBR tests per ASTM D1883 and classify the soil per ASTM D2487. The result is a subgrade modulus (MR) value that feeds directly into the pavement design.

Compaction Control and Fill Certification

For new embankments and pavement base layers, we perform field density tests (sand cone or nuclear gauge) and laboratory Proctor tests. We certify that each lift meets the specified compaction, preventing future settlement.

Pavement Section Design and Life-Cycle Analysis

Using the CBR and MR values, we design flexible (asphalt) or rigid (concrete) pavement sections per AASHTO 1993 or Mechanistic-Empirical (MEPDG) methods. We also estimate the design life and recommend maintenance intervals for Garden Grove traffic volumes.

Frequently asked questions

How deep should borings be for a road project in Garden Grove?

For typical residential streets and parking lots, borings should extend at least 5 feet below the proposed subgrade elevation or to a depth where competent soil is encountered. For arterial roads, we recommend 10 to 15 feet to capture deeper weak layers.

What is the typical CBR value for Garden Grove soils?

Native silty sands (SM) in Garden Grove typically have soaked CBR values between 5% and 12%. Older fills and clayey layers (CL) can drop to 2% to 4%. We always test in-situ because the variability is high.

How much does a road geotechnics study cost in Garden Grove?

A standard investigation for a small parking lot or street section ranges from US$900 to US$3,570 depending on the number of borings and laboratory tests. Larger projects with multiple alignments will be quoted individually.
