Garden Grove grew rapidly after World War II on former agricultural land underlain by deep alluvial deposits from the Santa Ana River. These young, loose sands and silty layers are precisely the type of materials that can lose strength during strong ground motion. A thorough soil liquefaction analysis in Garden Grove is not an academic exercise — it determines whether a site will remain stable or turn into a fluid mass under seismic loading. Before finalizing foundation design, teams often pair this assessment with a geotechnical study for seismic foundations that evaluates overall dynamic response, and with SPT soundings that provide the blow-count data required by the Youd-Idriss methodology.
Loose alluvial sands beneath Garden Grove can liquefy under M6.5+ events; the NCEER method quantifies that risk layer by layer.
Methodology and scope
A common mistake contractors make in Garden Grove is assuming that dense surface crust offers protection against deeper liquefiable layers. That assumption can be dangerous. The analysis here follows the NCEER 2001 workshop procedures, comparing cyclic resistance ratio (CRR) against cyclic stress ratio (CSR) for each soil layer. Key inputs include fines content, mean grain size, and corrected N₁₆₀ values from SPT. For shallow infrastructure, a separate pavement subgrade evaluation may be needed, since liquefaction-induced settlement affects road performance. Projects near the 22 freeway corridor often also require permeability field testing to model pore pressure dissipation rates.

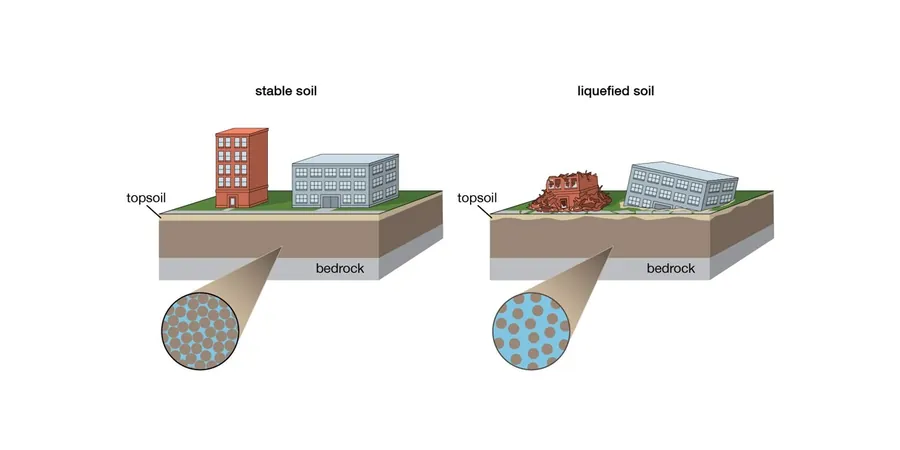

Technical reference image — Garden Grove
Local considerations
Garden Grove sits at an average elevation of only 27 meters above sea level, with a shallow water table often less than 3 meters deep. During the 1987 Whittier Narrows earthquake (M5.9), residents reported sand boils and ground cracks in the central basin. A repeat of a larger event on the Newport-Inglewood fault could trigger widespread liquefaction in the unconsolidated sediments beneath the city. Ignoring this risk means accepting differential settlements that crack slabs, tilt foundations, and sever utility lines. A proper soil liquefaction analysis in Garden Grove identifies which layers will fail and guides mitigation — whether through ground improvement, deep foundations, or drainage systems.
What is the difference between CRR and CSR in liquefaction analysis?
CRR (Cyclic Resistance Ratio) is the soil's inherent capacity to resist liquefaction, derived from corrected SPT blow counts and fines content. CSR (Cyclic Stress Ratio) is the seismic demand imposed by the design earthquake, calculated from peak ground acceleration, depth, and overburden stress. The factor of safety is CRR divided by CSR.
Which soil types in Garden Grove are most vulnerable to liquefaction?
Loose to medium-dense silty sands and sandy silts from the Santa Ana River floodplain, especially where the water table is above 6 m depth. Holocene alluvium with N₁₆₀ below 20 blows/ft and fines content less than 35 % presents the highest risk.
How much does a soil liquefaction analysis cost in Garden Grove?
A standard analysis covering two to three SPT borings to 20 m depth, with lab testing and a detailed report, typically ranges between US$2.840 and US$3.670. Final cost depends on site access, number of boreholes, and required turnaround time.
Can liquefaction be mitigated without deep foundations?
Yes. Ground improvement methods such as vibro-compaction, deep soil mixing, or gravel drains densify or drain the soil, reducing pore pressure build-up. For moderate risk sites, a reinforced mat foundation on improved ground may suffice instead of piles.
