ASCE 7-22 and the 2024 California Building Code (CBC) require a site-specific soil mechanics study for most commercial and multi-family projects in Garden Grove. The city sits within the Los Angeles Basin, where deep alluvial deposits, variable groundwater tables and proximity to active faults like the Newport-Inglewood zone demand rigorous subsurface characterization. A soil mechanics study in Garden Grove typically integrates SPT borings, laboratory index testing and Vs30 correlation to assign the correct Site Class (D or E) per ASCE 7 Table 20.3-1. Without this data, foundation design relies on default conservative parameters that increase concrete and steel quantities unnecessarily. We follow ASTM D1586-18 for SPT and ASTM D2487-17 for Unified Soil Classification, ensuring every recommendation is backed by reproducible field and lab evidence.
In Garden Grove, a 2 m rise in groundwater can reduce bearing capacity by 30% in silty sands — site-specific testing is not optional.
Methodology and scope
In Garden Grove we frequently encounter interlayered silty sands (SM) and fat clays (CH) with groundwater between 3 and 7 meters below grade. A thorough soil mechanics study here must cover:
Borehole logging with continuous SPT at 1.5 m intervals per ASTM D1586
Atterberg limits (ASTM D4318) to quantify plasticity in clay strata
Consolidation testing (ASTM D2435) for settlement estimates in compressible layers
We combine this data with a permeability field test to evaluate drainage conditions for shallow foundations and a subgrade modulus analysis to refine slab-on-grade design. The interplay between soil type and water table elevation is critical — a 2 m rise in phreatic level can reduce allowable bearing capacity by 30% in silty sands. Our laboratory is ISO 17025 accredited and our engineering team cross-references every borehole log with historic geodata from the California Geological Survey.

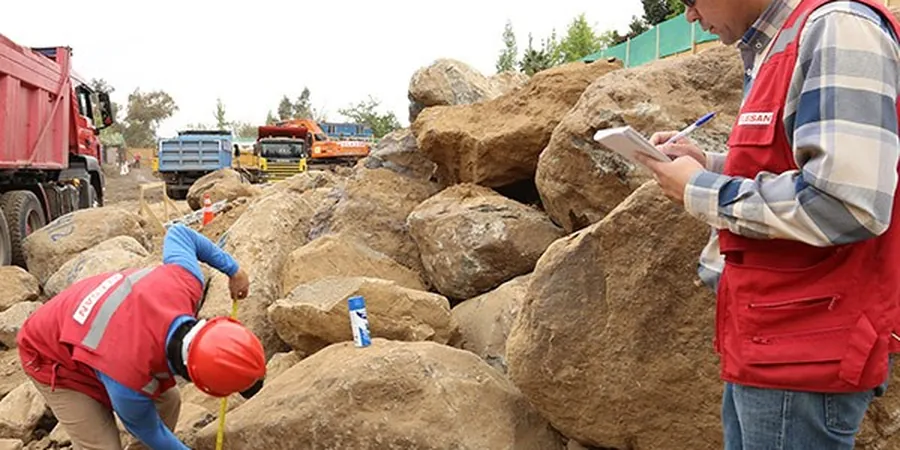

Technical reference image — Garden Grove
Local considerations
The primary geotechnical risk in Garden Grove is liquefaction-induced settlement during a major seismic event. The alluvial plain has saturated loose sands that fall within the NCEER 1997 criteria for cyclic softening; borehole logs from previous projects show SPT N-values as low as 8 blows/ft in the upper 6 m. A soil mechanics study must include a liquefaction triggering analysis per Youd et al. (2001) and calculate post-liquefaction settlement using the method by Tokimatsu & Seed. Differential settlement between zones of loose sand and stiff clay can exceed 5 cm under M7+ shaking, which is enough to crack structural slabs and shear utility connections. Shallow foundations without ground improvement will not meet IBC 2024 performance objectives for Risk Category II structures.
Continuous SPT sampling at 1.5 m intervals per ASTM D1586, with undisturbed tube sampling in cohesive layers for consolidation and triaxial testing.
02
Laboratory Index & Strength Testing
Afterberg limits, grain-size distribution (ASTM D6913), natural moisture content and unconfined compression tests on representative soil samples from each stratum.
03
Seismic Site Response & Liquefaction Analysis
Vs30 correlation from SPT N-values, site class assignment per ASCE 7, and liquefaction triggering assessment using NCEER 1997 criteria with post-liquefaction settlement calculations.
04
Foundation Design Recommendations
Allowable bearing capacities for spread footings and mat foundations, estimated total and differential settlements, and lateral earth pressures for basement walls and retaining structures.
Applicable standards
ASCE 7-22 (Chapter 20 – Site Classification), ASTM D1586-18 (Standard Test Method for SPT), ASTM D2487-17 (Unified Soil Classification System), California Building Code 2024 (Chapter 18 – Soils & Foundations)
Frequently asked questions
How deep should borings be for a soil mechanics study in Garden Grove?
For a typical two- to three-story building on shallow footings, borings should extend at least 10 m below the proposed foundation depth to capture the compressible alluvial layers. In areas with known deep fill or high groundwater, 15 m is advisable. We always verify against adjacent geotechnical reports from the Garden Grove Building Division.
What is the typical cost range for a soil mechanics study in Garden Grove?
A standard residential or small commercial study including two SPT borings to 12 m depth, full lab testing and a geotechnical report typically ranges between US$3,540 and US$5,520. Larger projects with multiple borings or advanced seismic analysis will be on the higher end; we provide a fixed price after reviewing the site conditions and structural loads.
How does groundwater affect foundation design in Garden Grove?
Garden Grove's shallow water table (often 3–7 m bgs) reduces effective stress in bearing strata, lowering allowable bearing capacity and increasing consolidation settlement. For slabs-on-grade, hydrostatic uplift pressures must be considered. A soil mechanics study quantifies these effects so the structural engineer can design waterproofing, under-slab drainage and appropriate footing depths.
What site class does Garden Grove typically fall under per ASCE 7?
Most of Garden Grove classifies as Site Class D (stiff soil) or Site Class E (soft soil) depending on the Vs30 profile. Older fill areas and the Santa Ana River floodplain often produce Site Class E, which triggers a mandatory site-specific ground motion analysis per ASCE 7-22 Section 21.1. Our study includes measured or correlated Vs30 to confirm the classification and avoid unnecessary seismic premiums.
