I remember a warehouse project near Garden Grove Boulevard where the owner wanted a fast schedule but the subsoil was mostly soft alluvial clay. We designed a preloading system without surcharge to accelerate consolidation before the floor slab went in. That job taught me how critical it is to match the fill height to the target settlement. In our experience, a well-planned preloading design can cut post-construction settlement by more than half. We always pair this analysis with a permeability test in the field to confirm drainage assumptions. Without that step, the time estimates can be off by months.
A well-designed preloading program can reduce long-term settlement by over 50% on soft alluvial clays found in Garden Grove.
Methodology and scope
Garden Grove sits on the Santa Ana River floodplain, which means the water table is shallow and the top soils are mostly fine-grained. That combination makes preloading design especially useful here. The main variables we track are the clay layer thickness, the initial void ratio, and the coefficient of consolidation. We follow the Terzaghi one-dimensional theory for primary settlement and add a secondary compression check for organic layers. To get reliable parameters, we run consolidation tests on undisturbed tube samples. For sites where the clay extends deeper than 30 feet, we also recommend a CPT probing to capture the stratigraphy in continuous detail. The final design uses staged fill placement with settlement plates to monitor progress. A key part of the analysis is comparing the calculated time to 90% consolidation against the project schedule.

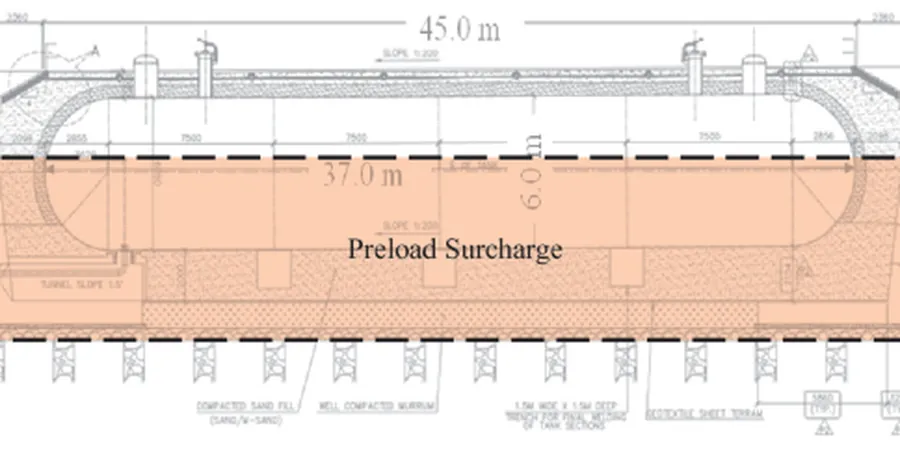

Technical reference image — Garden Grove
Local considerations
Garden Grove grew rapidly in the 1950s and 1960s, with many industrial pads built directly on compressible alluvium without ground improvement. That legacy shows up today as cracked slabs and uneven parking lots. The real risk is differential settlement when the preloading design doesn't account for variable clay thickness across the site. Without a thorough subsurface program, you can end up with a floor that dips 3 inches in one corner and stays level in another. We see this most often in older warehouse conversions where nobody checked the consolidation parameters first.
We run incremental loading consolidation tests per ASTM D2435 on undisturbed samples to determine Cc, Cr, and cv for your specific clay layers.
02
Settlement Calculation & Fill Plan
Using the measured soil parameters, we compute primary and secondary settlement magnitudes and design the staged fill schedule to reach the target preload stress.
03
Field Monitoring with Settlement Plates
We install and survey settlement plates on a grid layout to track real-time consolidation progress and adjust the fill rate if needed.
04
Post-Preloading Verification Testing
After the preload period, we perform CPT or SPT probes to confirm strength gain and verify that the target settlement has been achieved before slab construction.
Applicable standards
IBC 2021 Section 1804 (Bearing and Settlement), ASCE 7-16 Chapter 11 (Seismic Loads on Foundations), ASTM D2435 (Standard Test Method for One-Dimensional Consolidation Properties of Soils)
Frequently asked questions
How long does a preloading program typically take in Garden Grove?
For a typical clay layer 15 to 25 feet thick, the time to reach 90% primary consolidation ranges from 2 to 8 months. The exact duration depends on the coefficient of consolidation (cv) and the drainage path length.
What is the cost range for a preloading design study?
The design study including field exploration, lab testing, and the settlement analysis typically falls between US$690 and US$2,290. The final cost depends on the number of borings and the complexity of the stratigraphy.
Can preloading be combined with wick drains on a Garden Grove site?
Yes. When the clay layer is thick or the consolidation time is too long for the schedule, we design vertical wick drains to shorten the drainage path. The preloading design then incorporates the drain spacing and equivalent cv.
