Rigid pavement design in Garden Grove must account for the city's location within the Los Angeles Basin, where alluvial soils and a high water table create unique challenges for concrete pavement performance. The 2021 IBC and AASHTO 1993 Guide for Design of Pavement Structures serve as our primary references, but local conditions demand site-specific adjustments. A thorough understanding of subgrade modulus, slab thickness, and joint spacing is essential for preventing premature cracking and faulting. We combine laboratory testing with field data to calibrate design parameters for each project, ensuring long-term durability under traffic loads and thermal stresses. This approach reduces maintenance cycles and extends pavement life for streets, parking lots, and industrial yards in Orange County.
A 9-inch concrete slab over a 6-inch base with doweled joints prevented pumping and corner breaks on a Garden Grove warehouse project with silty sand subgrade and shallow water table.
Methodology and scope
Garden Grove's development accelerated after World War II, transforming agricultural land into a dense suburban grid. This history left a legacy of variable fill layers, old drainage channels, and compacted orchard soils that complicate modern pavement design. Our approach includes a detailed
subgrade investigation using the CBR test to determine California Bearing Ratio and resilient modulus
analysis of slab-on-grade interaction with differential settlement risk zones mapped across the site
We also evaluate subgrade compaction, moisture sensitivity, and the potential for expansive clay behavior. These factors directly influence the required slab thickness, joint layout, and load transfer efficiency. By integrating historical land-use data with current testing, we deliver rigid pavement designs that perform reliably under Garden Grove's specific soil and climate conditions.

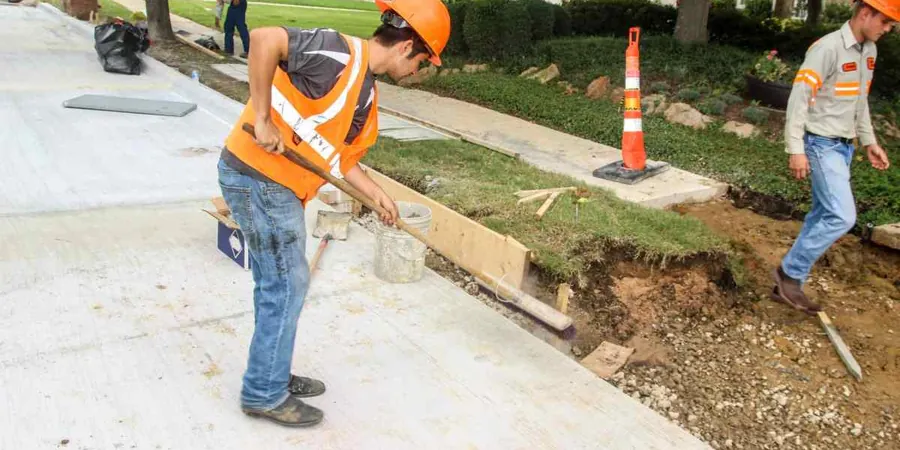

Technical reference image — Garden Grove
Local considerations
A recent warehouse project on Garden Grove Boulevard required a rigid pavement section for heavy forklift traffic. The subgrade consisted of silty sands with intermittent clay lenses, and the water table sat just 4 feet below grade. Without proper drainage and a stabilized subbase, the slab would have experienced pumping and corner breaks within two years. We designed a 9-inch concrete slab over a 6-inch aggregate base, with doweled joints and a capillary break layer. This case illustrates why rigid pavement design in Garden Grove must prioritize subsurface drainage and subgrade uniformity—two factors that local soil conditions constantly challenge.
8,000 – 15,000 psi (typical for local silty sands)
Concrete flexural strength (MR)
550 – 650 psi at 28 days
Slab thickness (industrial)
8 – 12 inches
Joint spacing
12 – 15 feet (unreinforced)
Load transfer efficiency
> 70% at joints (doweled)
CBR value (subgrade)
5 – 15 (typical range)
Associated technical services
01
Subgrade Characterization
In-situ CBR testing, resilient modulus determination, and soil classification to define design parameters for concrete pavement. Includes moisture-density relationships and compaction verification.
02
Slab Thickness & Joint Design
03
Drainage & Subbase Consulting
Evaluation of subsurface drainage needs, capillary break design, and aggregate base course specifications. We model water table fluctuations to prevent moisture-related pavement distress.
04
Quality Control Testing
Concrete cylinder compressive strength, flexural strength, and air content testing per ASTM standards. We also verify subgrade compaction and drainage layer permeability during construction.
Applicable standards
AASHTO 1993 Guide for Design of Pavement Structures, ACI 325.11R-19: Guide for Concrete Pavement Design, ASTM D4832-16: Standard Test Method for Preparation and Testing of Controlled Low Strength Material (CLSM) Cylindrical Test Specimens, ASTM D1883-21: Standard Test Method for California Bearing Ratio (CBR) of Laboratory-Compacted Soils
Frequently asked questions
What is the difference between rigid and flexible pavement design?
Rigid pavement uses a Portland cement concrete slab as the primary structural layer, distributing loads through slab bending action. Flexible pavement relies on a layered asphalt system where loads dissipate through aggregate base and subgrade. Rigid design typically requires thicker slab sections but offers longer service life and lower maintenance for heavy traffic.
How much does a rigid pavement design study cost in Garden Grove?
The typical cost ranges between US$2,120 and US$7,020 depending on site size, testing scope, and design complexity. A basic study for a small parking lot may fall at the lower end, while an industrial facility with multiple traffic classes and drainage analysis will reach the upper range. Contact us for a project-specific quote.
What joint spacing is recommended for concrete pavements in Garden Grove?
For unreinforced concrete slabs, joint spacing of 12 to 15 feet is standard to control curling and shrinkage cracking. In areas with expansive subgrade or high temperature differentials, spacing may be reduced to 10 feet. Doweled joints are recommended at transverse joints in industrial pavements to ensure load transfer.
