When specifying geomembranes in Garden Grove, ASTM D1586 and ASTM D2487 remain the foundational standards for subgrade characterization, but the local conditions demand more. The city sits within the Los Angeles Basin's alluvial plain, where groundwater fluctuates seasonally and soils alternate between silty sands and clay-rich horizons. Our team has seen projects fail because the geomembrane specification did not account for differential settlement potential in these heterogeneous deposits. Before finalizing any liner design, we recommend a thorough subsurface investigation that includes permeability testing to establish hydraulic conductivity baselines and subgrade evaluation to verify bearing capacity across the site. These steps ensure the geomembrane specification aligns with the actual ground conditions rather than generic assumptions.
Geomembrane specification in Garden Grove must account for alluvial heterogeneity: loose sands near the river, clays inland, and seasonal groundwater shifts.
Methodology and scope
Comparing a site near the Santa Ana River corridor with one in the central Garden Grove industrial district reveals stark differences in soil behavior. The river-adjacent parcels often contain loose sands with high permeability, requiring thicker geomembranes or additional protection layers against puncture from angular gravels. In contrast, the industrial zone typically has older alluvial clays with low permeability but high shrink-swell potential. For a project in the latter area, the geomembrane specification must include a geotextile cushion layer and consider seasonal moisture changes that could induce tensile stress on the liner. Our laboratory follows ASTM D638 for tensile testing and ASTM D4833 for puncture resistance on every geomembrane sample we evaluate, ensuring the specified material can withstand the local ground movement patterns documented by the California Geological Survey. This dual-assessment approach—combining soil mechanics with material performance—is what makes a specification solid for Garden Grove.

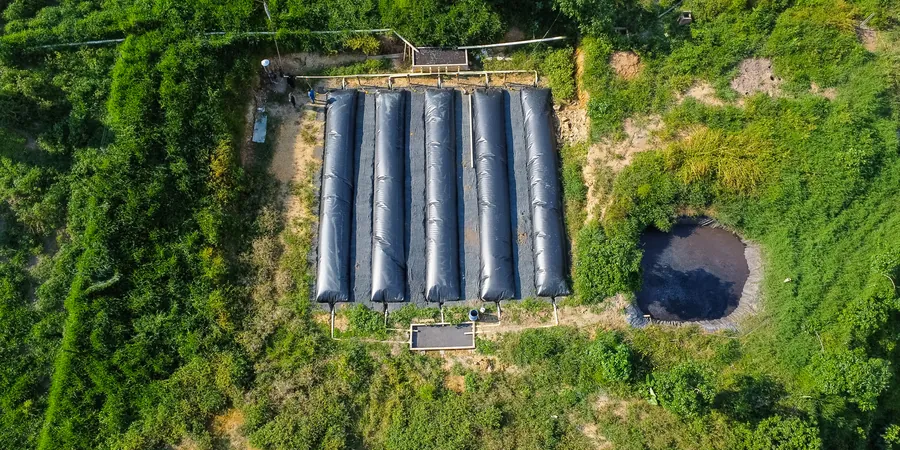

Technical reference image — Garden Grove
Local considerations
A recent containment pond project in Garden Grove encountered liner uplift within six months of installation. The geomembrane specification had been prepared for a site with shallow groundwater, but the seasonal rise during winter exceeded the design head assumptions. The liner delaminated at seams where field welding had not accounted for moisture on the sheet surface. This scenario is not uncommon in the area's variable climate. The fix required dewatering, seam testing per ASTM D6392, and installation of a granular drainage layer above the geomembrane. Had the specification included a groundwater monitoring plan and a minimum 2-foot separation from seasonal high water table, the failure could have been avoided. That lesson now informs every specification we review for Garden Grove.
We evaluate candidate geomembranes against project-specific chemical resistance, UV exposure, and mechanical loading. Our ISO 17025 accredited lab performs tensile, tear, puncture, and seam strength tests, providing certified data sheets that support the specification.
02
Subgrade & Interface Design Review
A geomembrane is only as good as the surface it rests on. We review subgrade compaction, drainage layer compatibility, and anchor trench design. For Garden Grove sites with high groundwater, we include dewatering recommendations and cushion layer specifications to prevent puncture and uplift.
Applicable standards
ASTM D1586 (Standard Test Method for SPT), ASTM D2487 (Classification of Soils for Engineering Purposes), ASTM D638 (Tensile Properties of Plastics), ASTM D4833 (Index Puncture Resistance of Geotextiles and Related Products), ASTM D6392 (Seam Strength and Seam Integrity for Geomembranes)
Frequently asked questions
What is the typical cost range for a geomembrane specification study in Garden Grove?
For a standard site evaluation including soil classification, subgrade testing, and material recommendations, the cost ranges between US$540 and US$1,570. Complex sites with high groundwater or multiple liner layers may exceed this range. A detailed quote is provided after the initial site review.
Which geomembrane thickness is recommended for Garden Grove's soil conditions?
For most Garden Grove applications, a 40-mil (1.0 mm) HDPE geomembrane provides adequate puncture resistance against the region's silty sands and gravels. Sites with angular fill or heavy traffic loading may require 60-mil (1.5 mm) material. The final thickness is determined after subgrade evaluation and puncture testing.
How does seasonal groundwater in Garden Grove affect geomembrane installation?
Seasonal groundwater rise, typically from December through March, can create hydrostatic uplift pressure under the liner. Our specification includes a minimum 2-foot separation from the seasonal high water table, plus a drainage layer and ballast design to counteract uplift forces during wet months.
What seam testing methods do you require for geomembrane installations?
We specify field seam testing per ASTM D6392, including both peel and shear tests. For Garden Grove projects, we also recommend air pressure testing for double-track fusion seams and vacuum box testing for extrusion seams, with a minimum frequency of one test per 500 linear feet per welder.
