A six-story mixed-use building on Garden Grove Boulevard was moving forward when the geotechnical report revealed loose sands extending past 30 feet. That changed everything. The contractor needed a deep foundation solution fast, and driven pile design became the obvious choice. By transferring loads through those upper layers to denser strata below, we avoided costly over-excavation and kept the schedule intact. Before specifying pile lengths and capacities, we always perform a calicatas exploratorias campaign to log stratigraphy accurately, then run ensayo SPT borings at each corner to measure N-values. That field data feeds directly into our design calculations, giving the structural engineer reliable parameters to work with.
Driven pile design in Garden Grove relies on high-resolution N-value profiles to confirm end-bearing reaches competent sand or gravel below the loose fill.
Methodology and scope
Garden Grove sits on the floodplain of the Santa Ana River, which means Holocene alluvium dominates the subsurface. These recent deposits are loose, variable, and prone to settlement under load. For a driven pile design to work here, you need precise N-value profiles and an understanding of groundwater fluctuations that can reach within 10 feet of the surface. We complement our field investigation with ensayo CPT soundings to capture continuous tip resistance and sleeve friction, which helps refine pile shaft and end-bearing contributions. When the soil contains gravelly zones that interfere with cone penetration, we switch to presurometro testing to measure lateral stiffness directly. This layered approach ensures that every pile depth and diameter is tailored to Garden Grove's specific ground conditions, not generic assumptions from a textbook.

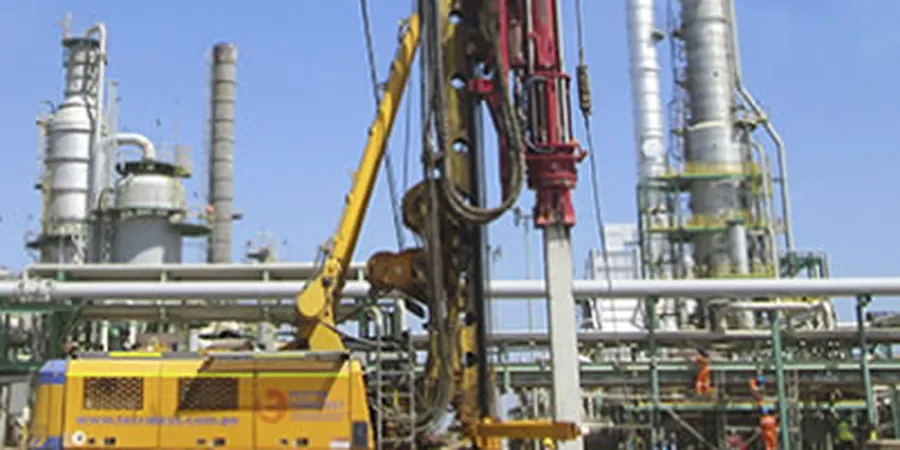

Technical reference image — Garden Grove
Local considerations
The Mediterranean climate of coastal Orange County brings dry summers and wet winters, but the real challenge for driven pile design in Garden Grove is the shallow water table. During rainy months, groundwater rises into the loose alluvium, reducing effective stress and making it harder to achieve the required driving resistance. If you don't account for this seasonal variation, you risk over-driving piles in the dry season only to find them under capacity when the water table comes back up. We model worst-case groundwater scenarios and specify test piles during both wet and dry periods to validate the design assumptions.
Boring logs, SPT sampling, CPT soundings, and groundwater monitoring specifically scoped to provide design parameters for driven piles. We follow ASTM D1586 and D6066 for field work.
02
Static Axial Capacity Analysis
Using both Meyerhof and Nordlund methods, we calculate ultimate skin friction and end-bearing resistance. Output includes load-settlement curves and recommended working loads per IBC.
03
Pile Group & Settlement Evaluation
For projects with multiple piles, we assess group efficiency, block failure potential, and long-term consolidation settlement under the pile cap. Results are integrated with structural foundation design.
04
Test Pile Program & PDA Monitoring
We supervise the installation of sacrificial test piles and perform Pile Driving Analyzer (PDA) tests to confirm capacity and driving stresses. Final reports include CAPWAP analysis for production piles.
Applicable standards
IBC 2018 Chapter 18 (Soils and Foundations), ASTM D1586-18 (Standard Test Method for SPT), ASTM D3966-21 (Standard Test Methods for Piles Under Static Axial Compressive Load), ACI 543R-12 (Design, Manufacture, and Installation of Concrete Piles)
Frequently asked questions
What is the typical cost range for driven pile design in Garden Grove?
The cost for a full driven pile design package — including field investigation, analysis, and test pile support — generally falls between US$1.310 and US$4.520. The final number depends on the number of borings, depth of piles, and whether PDA monitoring is required.
How deep do piles need to be driven in Garden Grove soils?
In most of Garden Grove, competent bearing strata (dense sands or gravels) are found between 35 and 50 feet below grade. We determine the exact depth by correlating SPT N-values with CPT tip resistance during the field investigation. Seasonal groundwater can influence the driving resistance, so we always check conditions at multiple times of the year.
Can driven piles be used near existing structures in Garden Grove?
Yes, but vibration monitoring is essential. We pre-drill through the upper 10–15 feet of loose fill to reduce displacement, and we install vibration sensors on adjacent buildings. Our test pile program includes a setback protocol to ensure no damage occurs during production driving.
