We recently worked on a commercial parking lot off Harbor Boulevard where the fill material came from a nearby cut. The contractor needed compaction specs fast. That is where the Proctor test comes in. For that job we ran both Standard and Modified Proctor to see how the soil would behave under light and heavy compaction. The results directly set the field density targets. Before compacting we also performed a granulometria to check the particle size distribution of the fill. Garden Grove sits on alluvial deposits and old river terraces so the soil varies from silty sands to fat clays. Knowing the optimum moisture content is key to avoiding soft spots later.
A Proctor test tells you the exact moisture content where your soil reaches maximum density. That number saves time and money on every lift.
Methodology and scope
Garden Grove grew fast after World War II and much of that development happened on former agricultural land. That means a lot of the soil was reworked by decades of farming before houses and strip malls went up. We see that legacy in the compaction records. For a Proctor test we take a representative sample and compact it in layers at different moisture contents. The Standard Proctor method follows ASTM D698 and uses a 5.5-pound hammer dropped 12 inches. The Modified Proctor uses a 10-pound hammer dropped 18 inches. That difference matters. For a road base or structural fill under a slab-on-grade we usually recommend the Modified test because it simulates heavy roller compaction. We also run the limites-atterberg on the same sample to classify the soil and predict its compaction behavior. The data from both tests gives us a complete picture of how the material will perform in the field.

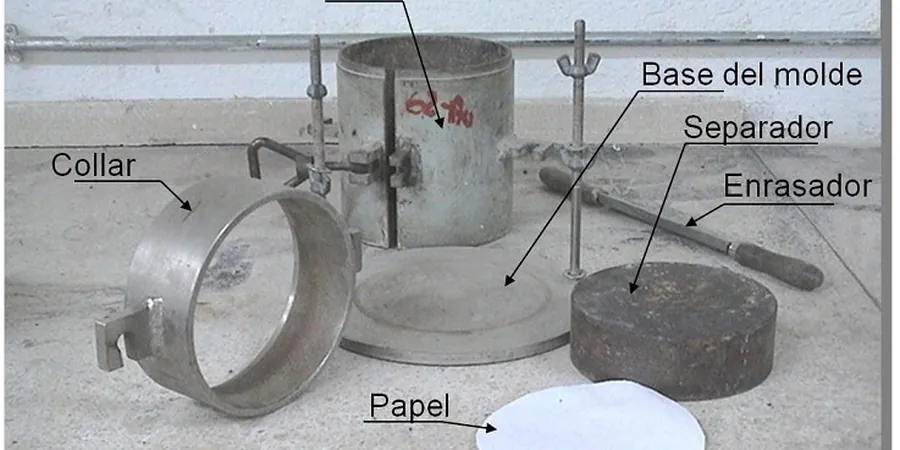

Technical reference image — Garden Grove
Local considerations
The biggest risk we see in Garden Grove is compacting too dry or too wet. If the moisture content is off by even two percent the density drops significantly. That leads to settlement under pavement or slabs. We use a standard oven to dry each point and a sand cone or nuclear gauge to verify field density. The Proctor curve tells us the target. But we also check for oversize particles. Rocks larger than 3/4 inch can skew the results. In soils with more than 30 percent gravel we run the test on the minus No. 4 fraction and apply a correction. That step is easy to skip but it saves a lot of trouble during construction.
For light compaction like backfill around utilities or residential slabs. Uses a 5.5 lb hammer and three layers. Best for soils with low compaction energy requirements.
02
Modified Proctor Test (ASTM D1557)
For heavy compaction like road bases, structural fills, and engineered embankments. Uses a 10 lb hammer and five layers. Simulates high-energy roller compaction.
What is the difference between Standard and Modified Proctor in Garden Grove?
Standard Proctor uses less compaction energy (12,400 ft-lbf/ft³) and is suitable for light fills. Modified Proctor uses about 56,000 ft-lbf/ft³ and matches heavy equipment. In Garden Grove we often recommend Modified for structural fills under commercial buildings.
How much does a Proctor test cost in Garden Grove?
The typical cost ranges between US$100 and US$210 per test depending on the method and number of points. Call us for a quote based on your specific material and project volume.
Why do I need a Proctor test for my Garden Grove project?
Without a Proctor curve you are guessing the optimum moisture content. That leads to low density, settlement, and potential slab cracking. The test gives you a clear target for field compaction.
Can you test soil with large gravel or cobbles?
Yes. If more than 20% of the material is retained on the No. 4 sieve we run the test on the fine fraction and apply a gravel correction. We also recommend a gradation test to confirm the correction is valid.
