On a typical Garden Grove job, our crew mobilizes with a vibratory hammer rig and a crane to drive interlocking steel sections into the alluvial sands that underlie most of the city. The groundwater table here sits between 4 and 8 feet below grade, so every sheet pile wall design we prepare starts with an accurate hydrostatic pressure profile. Before driving a single pile, we correlate blow counts from nearby ensayo CPT soundings with the soil classification to confirm that the toe embedment depth is sufficient for both overturning and basal heave resistance.
We never finalize a sheet pile wall design without at least two groundwater observation wells — the perched aquifers in Garden Grove are simply too variable.
Methodology and scope
Garden Grove sits on the coastal plain of Orange County, where the soil profile is dominated by silty sands and clayey sands from the Santa Ana River floodplain. The combination of high seismic demand per ASCE 7-22 and a shallow water table means that a sheet pile wall design must account for both static lateral earth pressures and the dynamic increment from earthquake loading. We frequently incorporate a subrasante vial modulus check to verify that the passive resistance zone won't degrade under cyclic loading. For walls retaining more than 12 feet of fill, we also run a licuefaccion analysis using Youd-Idriss 2001 to confirm that the sand layers below the water table won't lose strength during a design earthquake. Projects near the Garden Grove Channel require additional scour protection, so we integrate cimentaciones-sismicas concepts to tie the wall cap into the overall foundation system.

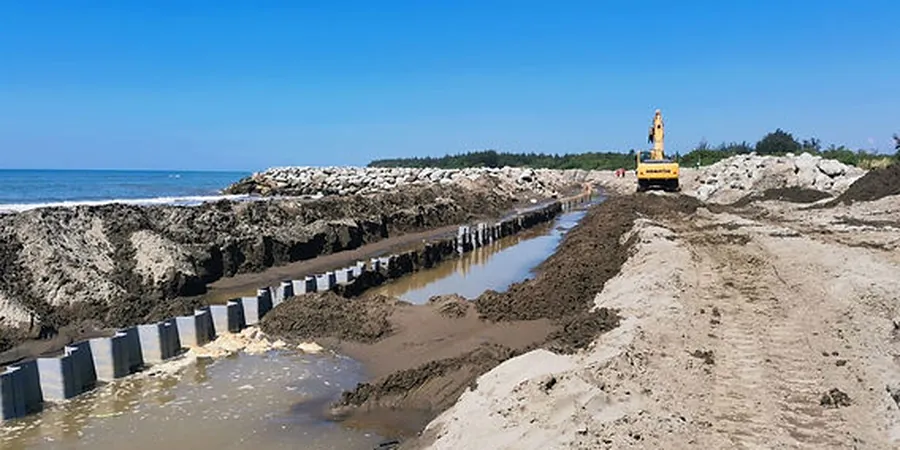

Technical reference image — Garden Grove
Local considerations
A 14-foot-deep utility trench we supervised near Chapman Avenue began to show significant seepage through the interlocks after a rain event. The original design had underestimated the perched water in the older Quaternary deposits. We had to mobilize a dewatering system and re-evaluate the wall embedment to prevent a full collapse. That experience taught us to always request at least two groundwater observation wells before finalizing a sheet pile wall design in Garden Grove, because the local aquicludes can create unexpected pressure layers.
SM, SP-SM (silty sand, poorly graded sand with silt)
Groundwater depth
4 ft - 8 ft below grade
Maximum retained height
28 ft (with tieback)
Section type
AZ 18-700 or equivalent
Factor of safety (overturning)
2.0 (static) / 1.3 (seismic)
Corrosion allowance
0.06 in per exposed face per 25 yr
Associated technical services
01
Temporary Excavation Support
Cantilevered or anchored walls for utility trenches and building basements up to 25 ft deep. We use AZ sections and design for rapid installation with vibratory hammers.
02
Permanent Waterfront Walls
Gravity and anchored walls along channels and flood control basins, designed with a 75-year service life including corrosion protection and scour analysis.
03
Shoring Design for Adjacent Structures
Walls with soldier piles and lagging or continuous sheet piles when settlement of adjacent pavement or buildings is a concern. We analyze lateral deflections with p-y curves.
What is the typical embedment depth for a sheet pile wall in Garden Grove?
For a cantilevered wall retaining 10 feet of sand, we usually embed the piles to a depth equal to 1.2 times the retained height. In anchored walls, the embedment can be reduced to 0.6 times the retained height, provided the passive resistance zone is verified with SPT blow counts.
How much does sheet pile wall design cost in Garden Grove?
A complete design package for a typical residential or commercial excavation runs between US$1,350 and US$5,940, depending on wall height, number of tieback rows, and the need for seismic analysis. A simplified cantilever wall design for a shallow trench on private property is usually at the lower end of that range.
Do I need a sheet pile wall for a 12-foot-deep excavation in sandy soil?
Not always, but it is the safest option. For Garden Grove's loose to medium-dense sands with groundwater at 5 feet, a soldier pile and lagging system with dewatering may work, but the sheet pile provides a continuous barrier that prevents raveling and reduces water inflow. We always run a stability analysis before recommending the final system.
What is the difference between a cantilevered and an anchored sheet pile wall?
A cantilevered wall relies entirely on its embedment depth for stability, so it requires deeper piles. An anchored wall uses one or more rows of tiebacks or ground anchors to transfer the lateral load into the soil behind the wall, allowing a shorter embedment. Anchored walls are typical for heights above 15 feet in Garden Grove.
