Garden Grove sits on deep alluvial deposits from the Santa Ana River floodplain. These young soils, often loose sands and soft clays near the surface, require careful characterization before any structural load is applied. The coastal humidity keeps moisture content high year-round, which directly affects blow counts in cohesionless strata. We perform the SPT (Standard Penetration Test) to obtain N-values at 1.5-meter intervals, following ASTM D1586-18 strictly. Before driving a split spoon, we first advance a borehole with a rotary wash method to minimize disturbance. When groundwater is shallow, as it often is in the northwestern tracts, we record water levels inside the casing and adjust interpretations accordingly. The data feeds directly into bearing capacity estimates and liquefaction triggering analysis per NCEER guidelines.
In Garden Grove's alluvial basin, SPT N-values below 10 in the upper 6 meters consistently correlate with liquefaction susceptibility during a design earthquake.
Methodology and scope
Garden Grove averages 75 feet of Quaternary alluvium over older Pleistocene formations. That means the upper 10 to 15 meters are where most of the geotechnical risk lives. The SPT (Standard Penetration Test) captures that variability layer by layer. We use an automatic trip hammer with a 140-pound drop at 30 inches, calibrated annually to deliver 60% to 80% energy efficiency. For the upper loose sands, we often pair the SPT with cone penetration testing to get continuous tip resistance profiles. In clay layers, we take undisturbed tube samples adjacent to the blow count intervals for consolidation testing in the lab. The combination lets us assign site class per ASCE 7-22, which directly controls the seismic design spectrum for any new structure in Garden Grove.

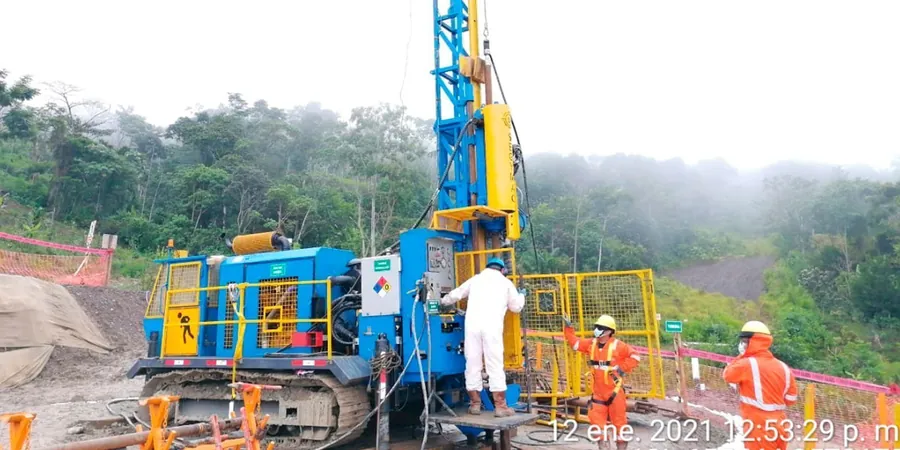

Technical reference image — Garden Grove
Local considerations
ASCE 7-22 requires site-specific ground motion analysis for Seismic Design Categories D, E, and F. Garden Grove lies entirely within Category D, and some southern tracts near the 405 Freeway fall into Category E due to soft clay profiles. Without a proper SPT (Standard Penetration Test) campaign, the default Site Class D assumption can underestimate spectral accelerations by 30% or more. We have seen projects where a single SPT boring in a corner of the lot missed a buried channel filled with loose sand. That channel, when saturated during a design-level earthquake, would have triggered lateral spreading. The NCEER workshop (Youd & Idriss, 2001) recommends SPT-based liquefaction evaluation for these exact conditions. Skipping the test is not an option in Garden Grove.
Rotary wash borings with SPT at 1.5 m intervals, plus undisturbed tube sampling in clay strata. Full field logs with groundwater observations.
02
Liquefaction Analysis (NCEER Method)
We process raw N-values to N160, apply fines content corrections, and compute factor of safety against liquefaction using the 2001 Youd-Idriss curves. Results include settlement estimates for post-liquefaction reconsolidation.
03
Seismic Site Class Determination
Using SPT N-values to assign Site Class A through F per ASCE 7-22. For borderline profiles we add vs30/" data-interlink="1">shear wave velocity measurements to refine the classification.
04
Shallow Foundation Bearing Capacity
Bearing capacity calculations from corrected N-values using Meyerhof and Terzaghi methods. Includes allowable soil pressure at service limit state per IBC 2021.
Applicable standards
ASTM D1586-18 Standard Test Method for SPT, ASCE 7-22 Seismic Site Class Definitions, NCEER/NSF Workshop (Youd & Idriss, 2001) SPT-Based Liquefaction, IBC 2021 Section 1803 Geotechnical Investigation
Frequently asked questions
How deep do SPT borings need to go in Garden Grove?
Minimum depth is 30 feet or until refusal in dense sand or stiff clay. For structures with deep foundations, we extend borings to 1.5 times the width of the largest footing or to the depth of influence of the design earthquake.
What is the typical SPT N-value range for Garden Grove alluvium?
Upper 10 feet often show N-values of 4 to 10 in loose fill and young sand. Below 15 feet, values increase to 15 to 30 in medium dense sands. Stiff clay layers occasionally yield N-values above 25.
How much does an SPT (Standard Penetration Test) cost in Garden Grove?
A single SPT boring to 30 feet with logging and laboratory classification typically ranges from US$590 to US$740, depending on access, traffic control needs, and number of samples tested.
Do you offer combined SPT and CPT testing?
Yes, we frequently pair SPT borings with cone penetration tests in the same investigation. The SPT provides soil samples for classification and lab testing, while the CPT gives a continuous stratigraphic profile with tip resistance and friction ratio. This combination is common for liquefaction studies in Garden Grove.
