Our crew pulls up to the site with a modified pickup truck carrying a nuclear density gauge and a portable Proctor hammer. In Garden Grove, road embankment design starts with understanding the fill material. We run compaction control tests using ASTM D6938 for in-place density. The soil here often has clay layers from old floodplain deposits. Before placing any fill, we check moisture content with a Speedy moisture tester. The target is to hit 95% of maximum dry density per Caltrans specifications. If the borrow source has high fines, we adjust compaction energy. We also coordinate with the grading contractor to avoid soft spots. Each lift is tested before the next one goes on. A plate load test confirms the bearing capacity before pavement placement.
In Garden Grove, shallow groundwater and variable alluvial soils require careful drainage design and staged compaction control for every embankment lift.
Methodology and scope
Garden Grove grew fast after the 1950s, turning orange groves into subdivisions. That rapid development means many existing embankments were built without proper geotechnical control. Today, road embankment design here must account for variable alluvial soils. We see silty sands interbedded with stiff clay lenses. The water table sits shallow in winter, around 4 to 6 feet deep. That makes drainage design critical. We install standpipe piezometers to monitor pore pressure during construction. For fills over 15 feet, we run stability analyses using Spencer's method. We also incorporate compaction testing to verify each lift meets density targets. The city requires a geotechnical report for any embankment exceeding 5 feet in height. That report must include laboratory compaction curves and shear strength data.

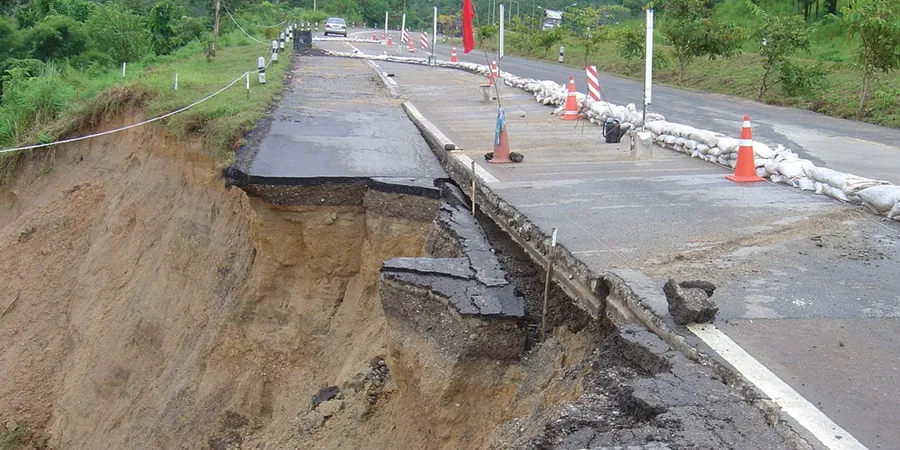

Technical reference image — Garden Grove
Local considerations
ASCE 7-22 sets the seismic design criteria for embankments in California. Garden Grove lies in Seismic Zone 4, with peak ground acceleration up to 0.6g. That means road embankment design must include liquefaction assessment for saturated loose sands. We run cyclic triaxial tests to evaluate strength loss under earthquake loading. Another risk is differential settlement where fill meets cut sections. We model consolidation using one-dimensional tests on undisturbed samples. If the foundation soil is soft, we recommend wick drains or lightweight fill. Ignoring these risks leads to cracking, slope failures, or pavement distress after the first rainy season.
We run field density tests using nuclear gauge or sand cone methods. Our lab performs Standard and Modified Proctor tests to establish maximum dry density and optimum moisture. We issue daily compaction reports for each lift.
02
Slope Stability & Settlement Analysis
Using limit-equilibrium software (SLIDE), we evaluate factor of safety for embankment slopes. We also run consolidation tests on undisturbed samples to predict settlement magnitude and rate. Results are presented in a geotechnical report.
Applicable standards
ASTM D698 (Standard Proctor compaction), ASTM D6938 (nuclear density gauge method), Caltrans Standard Specifications Section 19, ASCE 7-22 Seismic Load Provisions for embankments
Frequently asked questions
What is the typical cost of a road embankment design study in Garden Grove?
The cost ranges from US$1,260 to US$4,780 depending on embankment height, number of borings, and laboratory testing. A simple 10-foot fill with five compaction tests is on the lower end. A 25-foot embankment with stability analysis and settlement modeling falls closer to the upper end. Contact us for a quote tailored to your project.
Why is compaction control critical for embankments in Garden Grove?
Garden Grove's alluvial soils have variable moisture content and fines. Without proper compaction, embankments settle unevenly or soften during rain. We use ASTM D698 to find the target density and test each lift with a nuclear gauge. This prevents post-construction pavement cracking and slope sloughing.
How do you handle shallow groundwater during embankment construction?
We install temporary wick drains or trench drains to lower the water table before fill placement. During construction, we monitor pore pressure with piezometers. If the groundwater rises, we stop compaction and let the fill dry to optimum moisture. This avoids pumping action that degrades density.
What seismic considerations apply to embankments in Garden Grove?
ASCE 7-22 requires a site-specific response spectrum for Seismic Zone 4. We assess liquefaction potential using SPT-based methods (Youd-Idriss 2001). If loose saturated sands exist, we recommend ground improvement such as stone columns or deep soil mixing. The embankment itself must be compacted to resist lateral spreading.
