A common mistake we see in Garden Grove is assuming the ground conditions are uniform across the city. Between the Santa Ana River floodplain deposits and the older alluvial terraces, soil behavior at depth varies significantly. A contractor who designs a shoring system based on a boring from two blocks away can end up with a wall that deflects too much or a soldier pile that won't drive. That is why geotechnical design of deep excavations in Garden Grove must start with site-specific data. We integrate local borehole logs and historical groundwater records to set the base parameters before moving to structural design.
A deep excavation design that ignores cyclic softening in alluvial sands can lead to wall failure during a moderate seismic event in Garden Grove.
Methodology and scope
Our approach follows IBC Chapter 18 and ASCE 7-16 for seismic earth pressures. Garden Grove sits in a region with high liquefaction potential, so we evaluate cyclic softening in cohesionless layers before sizing the excavation support. We routinely apply the ensayo SPT method to obtain blow counts at every depth interval, which directly feeds into lateral earth pressure calculations. The design process includes:
Groundwater control via dewatering or cutoff walls
Structural design of soldier piles, sheet piles, or secant walls
Deflection and settlement analysis for adjacent structures
Each step is calibrated to Garden Grove's specific subsurface profile, not a generic template.

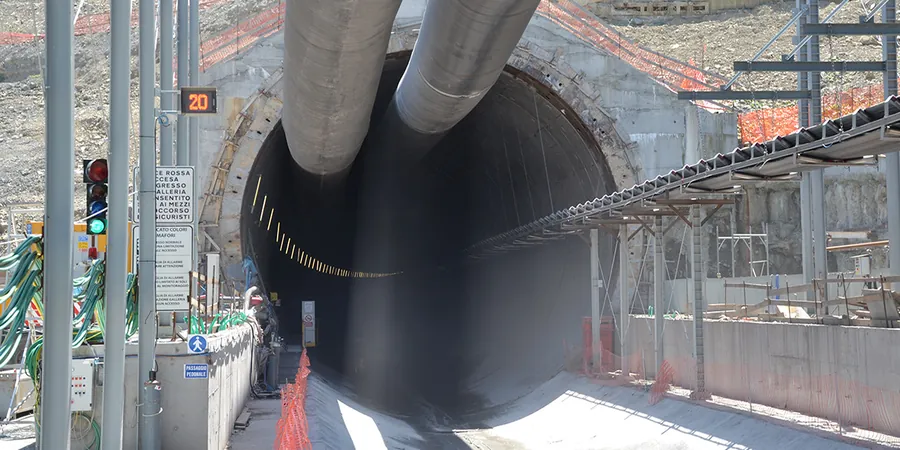

Technical reference image — Garden Grove
Local considerations
In Garden Grove, we often see underestimation of groundwater pressures during the rainy season. The water table can rise 1 to 2 meters between December and March, which doubles the hydrostatic load on a retaining wall. If the geotechnical design of deep excavations in Garden Grove does not account for seasonal fluctuation, the wall may experience excessive bending moments or even local failure at the toe. We also flag the risk of settlement in adjacent streets, especially on Harbor Boulevard where old fill layers exist. Our designs include contingency measures for both scenarios.
Soldier pile and lagging, sheet pile walls, and tieback anchor systems designed per AASHTO LRFD and IBC.
02
Groundwater Control Analysis
Dewatering system design, cutoff wall specification, and seepage analysis for excavations below the water table.
03
Adjacent Structure Protection
Settlement monitoring, underpinning design, and vibration control plans for excavations near existing buildings.
04
Seismic Earth Pressure Analysis
Mononobe-Okabe method and finite element modeling for dynamic lateral pressures in seismic zones.
Applicable standards
IBC Chapter 18 (Soils and Foundations), ASCE 7-16 (Minimum Design Loads, Section 12.13 – Earth Pressure), ASTM D1586-18 (Standard Test Method for SPT), FHWA-NHI-14-007 (Earth Retaining Structures Manual)
Frequently asked questions
What is the typical cost range for a geotechnical design of deep excavations in Garden Grove?
For a standard project in Garden Grove, the geotechnical design of deep excavations typically ranges between US$2,250 and US$8,500. This varies with excavation depth, soil complexity, and whether groundwater control is required.
What soil conditions are common in Garden Grove for deep excavations?
Garden Grove is underlain by alluvial deposits from the Santa Ana River. You typically find silty sands and gravels in the upper 6 meters, underlain by stiff clay layers. The water table sits between 1.5 and 3.0 meters deep, which requires careful dewatering planning.
Do I need a geotechnical design for a 3-meter-deep excavation in Garden Grove?
Yes, for any excavation deeper than 1.5 meters that will be supported by a retaining structure, IBC requires a geotechnical investigation and design. In Garden Grove, the high groundwater and liquefaction risk make professional design essential even for shallow shoring.
How long does the design process take for a deep excavation in Garden Grove?
For a typical commercial project, the design phase takes 2 to 4 weeks after the soil investigation is complete. This includes parameter interpretation, wall modeling, and producing stamped calculations and drawings for permit submittal.
