Garden Grove sits on a deep alluvial plain where groundwater sits just a few feet below grade. That shallow water table makes field permeability testing a must for any excavation or foundation work. We run Lefranc and Lugeon tests directly in the borehole to measure how fast water moves through the sand and gravel layers. These results tell us exactly what drainage measures or dewatering systems your site needs. Before you pour a slab or dig a basement, a proper infiltration test clarifies the soil's natural drainage behavior. That data saves you from unexpected water problems during construction.
A single Lugeon value below 1 indicates very low permeability — your dewatering plan can be minimal. Above 10 means expect significant inflow.
Methodology and scope
Garden Grove's urban growth exploded after World War II, turning former citrus groves into dense residential blocks. That rapid development means many lots sit on undocumented fill or variable alluvium. For a field permeability test we seal off a section of the borehole with packers, then inject water at constant pressure. The Lefranc method works best in low-permeability silts and clays, while Lugeon is preferred for fractured or jointed materials. We follow ASTM D5084 for constant-head and falling-head procedures. All readings are recorded digitally and cross-checked against local well logs. Combining this with a presurometer test gives a complete picture of both flow and deformation behavior under load.

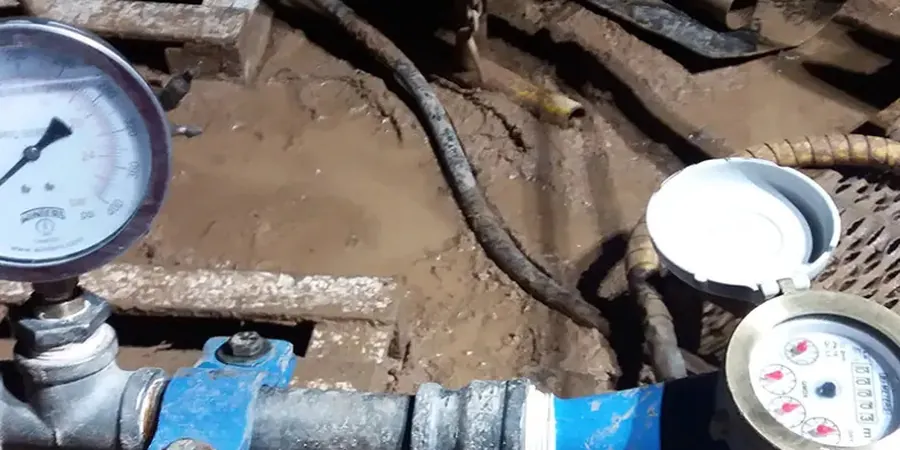

Technical reference image — Garden Grove
Local considerations
In West Garden Grove near the 405 corridor, soils are looser and more permeable than the denser clays found east of Harbor Boulevard. That difference can double or triple expected water inflow rates. If you test only one location, you might underestimate seepage on the other side of the property. We always recommend at least two test holes on larger parcels. Missing a high-permeability lens can lead to flooded excavations and delayed schedules. Knowing the exact Lugeon value lets you size pumps and drainage correctly from day one.
Best for fine-grained soils and silty sands. We measure the rate of water level drop in a sealed borehole section. Results give k-values between 1E-7 and 1E-4 cm/s.
02
Lugeon Packer Test
Preferred for granular soils and coarse alluvium. Water is injected under controlled step pressures. Output is a Lugeon value that directly correlates to grout take and dewatering needs.
Applicable standards
ASTM D5084 – Standard Test Methods for Measurement of Hydraulic Conductivity, USBR 7300 – Permeability Tests in Boreholes (Lefranc and Lugeon), ASTM D1586 – Standard for SPT sampling (used for test interval selection)
Frequently asked questions
What is the difference between Lefranc and Lugeon tests?
The Lefranc test uses variable head — you fill the borehole and measure the drop over time. It suits low-permeability soils. The Lugeon test applies constant pressure in steps and measures flow rate. It is better for high-permeability sands and gravels. Both follow ASTM D5084 procedures.
How many test holes do I need for a typical Garden Grove lot?
For a standard 7,500 sq ft lot, one test hole is often enough if the soil is uniform. For larger parcels or projects near the 405 corridor, we recommend two holes. The alluvium changes quickly between Harbor and Euclid streets.
How much does a field permeability test cost in Garden Grove?
The price range for a single test hole with one stage is between US$660 and US$960. This includes mobilization, equipment, labor, and a written report. Additional stages or deeper intervals add cost.
Can this test replace a full pump test for dewatering design?
No — a Lugeon or Lefranc test gives point measurements. For large excavations, a full pump test with observation wells is needed. The field permeability test is a fast, cost-effective screening tool to decide if larger dewatering studies are necessary.
