Garden Grove sits on deep alluvial deposits from the Santa Ana River, with groundwater typically 3 to 6 meters below grade and a high liquefaction potential during a major seismic event. These conditions demand a cellular confinement system that can resist lateral spreading and differential settlement. Our geocell design for Garden Grove integrates site-specific soil parameters from a calicatas exploratorias campaign, plus laboratory classification per ASTM D2487, to determine the ideal cell height, weld spacing, and infill material. We then model the reinforced layer against ASCE 7 seismic loads and IBC slope stability criteria, ensuring the geocell mat performs as a coherent slab even under cyclic shear.
In Garden Grove, geocell mats reduce differential settlement by up to 60% on soft alluvial soils when designed with proper infill and anchor geometry.
Methodology and scope
Garden Grove grew rapidly from citrus orchards to a dense suburban city, with many subdivisions built on undocumented fills and old drainage channels. That urban history means soil variability is high within a single lot. Our geocell design process starts with a thorough subsurface investigation using ensayo SPT in multiple boreholes to identify soft layers, then we correlate N-values with the required tensile strength of the geocell strips. For slopes steeper than 2:1, we also run direct shear tests on the infill material to calculate interface friction angles. The design output includes a confinement depth, anchor trench details at the crest, and a drainage layer specification to prevent hydrostatic uplift behind the geocell panel.

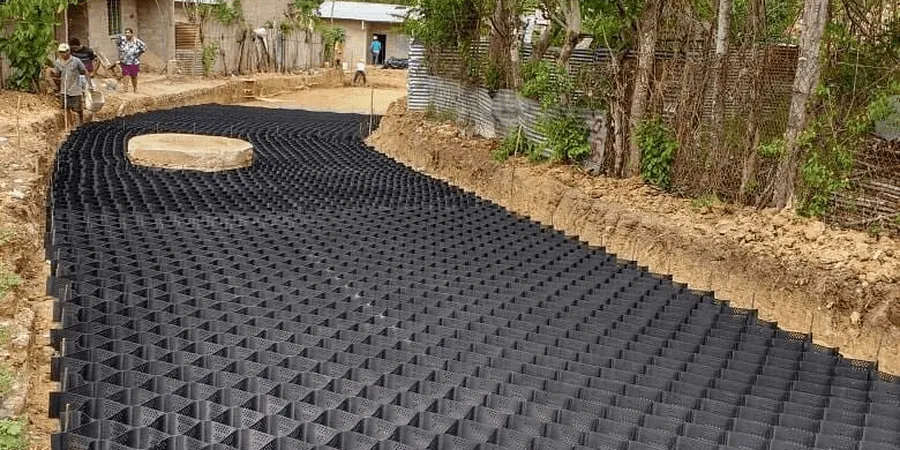

Technical reference image — Garden Grove
Local considerations
A common mistake we see in Garden Grove is contractors placing geocells directly over undocumented fill without verifying compaction or removing organic debris. The result is a wavy surface after the first wet season, with cells pulling apart at the seams because the infill settled unevenly. A proper geocell design must include a proof-roll of the subgrade, a minimum 150 mm granular working platform below the cells, and anchor stakes at 1.5 m centers along the perimeter. Skipping these steps turns a solid reinforcement system into a cosmetic layer that fails under repeated traffic or seismic shaking.
Geocell reinforcement for cut slopes and embankments up to 3:1, including infill selection (angular gravel or sand-cement mix), anchor trench detail, and drainage blanket behind the cells to control seepage.
02
Load Support for Access Roads
Design of geocell mats under unpaved haul roads and temporary construction platforms, using local aggregates and a stress-distribution model to limit rut depth to less than 50 mm under 40-tonne axle loads.
03
Retaining Wall Base Reinforcement
Geocell foundation layer beneath MSE walls and gabion structures, reducing bearing pressure on soft soils and improving global stability factor of safety to at least 1.5 per FHWA guidelines.
Applicable standards
ASTM D4595 (Tensile Properties of Geotextiles by Wide-Width Strip Method), ASTM D4884 (Seam Strength of Geotextiles), ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures), IBC 2021 Chapter 18 (Soils and Foundations)
Frequently asked questions
What is the typical cost of a geocell design study for a residential slope in Garden Grove?
For a single-family lot with one slope face up to 6 m high, our geocell design study ranges between US$830 and US$2,850 depending on the number of boreholes required and whether we perform direct shear tests on the infill material. A detailed quote is issued after the site walk.
How does groundwater affect geocell performance in Garden Grove?
High groundwater reduces the effective confining stress on the infill, so we apply a correction factor of 0.85 to the allowable bearing capacity per IBC Table 1806.2. We also design a subgrade drainage system (perforated pipe wrapped in geotextile) to keep the water table at least 300 mm below the geocell base.
Can geocells be used on slopes steeper than 2:1?
Yes, but only if the slope is reinforced with geogrids anchored behind the geocell panel and the infill material has a friction angle of at least 38 degrees. We run a Bishop simplified stability analysis to confirm the global factor of safety meets or exceeds 1.5 for static conditions and 1.1 for pseudo-static seismic loads.
What infill material works best for geocells in Garden Grove's alluvial soils?
A well-graded angular crushed stone (¾-inch minus) with less than 5% fines provides the best interlock and drainage. For vegetated slopes, we specify a sandy loam with 10% organic content and a geocell with a textured inner surface to hold the root mass.
