Garden Grove grew fast after WWII, transforming from citrus groves into a dense suburban grid. Much of that development sits on alluvial fan deposits from the Santa Ana River system — silty sands and clayey layers with variable compaction. When we evaluate slope stability here, the main challenge isn't steep hills but the gentle, long gradients next to flood-control channels and road cuts. The soils can lose strength quickly after prolonged rain or seismic shaking. That's why before any cut or fill we run a thorough asentamiento diferencial check and a clasificacion suelos profile to map the weakest horizons.
In Garden Grove, the critical failure surface often follows the interface between the loose surficial sands and the underlying older alluvial clay.
Methodology and scope
In the field, we often see that the top 3 to 4 meters of Garden Grove soils are loose silty sands with occasional clay lenses — exactly the kind of material that triggers shallow planar slides after wet winters. Our analysis follows a clear sequence. We start with borehole logs and SPT data to define stratigraphy, then sample undisturbed Shelby tubes for direct shear and triaxial testing. With those parameters we run limit-equilibrium models (Bishop simplified, Spencer) for both static and pseudo-static seismic conditions. The seismic coefficient comes from ASCE 7-22 site class D or E, depending on the Vs30 measured. For deeper failure surfaces we also incorporate ensayo cpt soundings to capture continuous strength profiles without gaps.

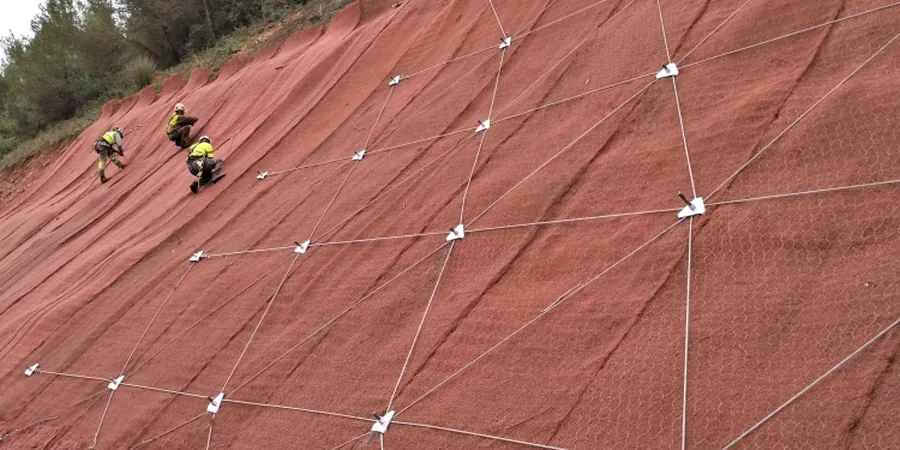

Technical reference image — Garden Grove
Local considerations
Our rig sets up along channel banks and slope toes in Garden Grove residential areas. We drill 4-inch boreholes to 30 feet minimum, logging every 2.5 feet with SPT blows. The risk is real: a 12-foot cut on a wet clay seam can slide overnight. We place inclinometer casings in every permanent slope to track movement over seasons. If the factor of safety drops below 1.3 on first run, we immediately recommend drainage or soil nailing. The data goes straight into a GeoStudio model with the client's geotechnical report — no delays, no guesswork.
Boreholes to 50 ft with SPT, Shelby tube sampling, and continuous coring in stiff layers. We log every foot and classify soils per ASTM D2487.
02
Laboratory Strength Testing
Direct shear, triaxial CU, and unconfined compression tests on undisturbed samples. All tests follow ASTM standards with NATA-accredited procedures.
03
Limit-Equilibrium Modeling
Bishop, Spencer, and Morgenstern-Price methods for circular and non-circular surfaces. We include pseudo-static seismic loads per ASCE 7 site class.
04
Instrumentation & Monitoring
Inclinometers, piezometers, and settlement plates installed on active slopes. Monthly readings with real-time alerts if movement exceeds 0.25 in./month.
What is the typical cost range for a slope stability analysis in Garden Grove?
For a standard residential slope with 3 to 5 boreholes and full lab testing, the cost ranges between US$1,190 and US$4,310. The final price depends on slope height, access conditions, and whether instrumentation is required.
How long does a slope stability study take from start to finish?
Field drilling and sampling take 2 to 3 days. Lab testing adds another 5 to 7 days. Modeling and report writing take 3 to 5 days. Total turnaround is typically 10 to 15 business days for a complete analysis.
Do I need a slope stability analysis for a small backyard retaining wall?
If the retained height exceeds 4 feet or the wall supports a surcharge (driveway, structure), yes. Garden Grove's alluvial soils can lose cohesion quickly, and a simple wall failure can cascade into a larger slope movement. We recommend analysis for any wall over 3 feet in seismic zones.
