Much of Garden Grove is built on alluvial deposits from the Santa Ana River, with sandy soils and shallow groundwater between 5 and 15 feet. This geology creates a real risk of differential settlement when loads vary across a foundation. Our team uses survey monuments and settlement plates to track movement over time, paired with laboratory consolidation tests on undisturbed samples. Before we install any instrumentation, we always complete a thorough sondajes de penetración estándar (SPT) to profile the soil's stiffness and locate loose layers. Combining SPT data with our in-situ monitoring gives a clear picture of how the ground will behave under load, so we can recommend the right foundation solution for your project in Garden Grove.
Combining SPT data with our in-situ monitoring gives a clear picture of how the ground will behave under load in Garden Grove.
Methodology and scope
We bring pneumatic settlement sensors and a digital data logger that records readings every hour, even remotely. The system includes a reference beam anchored below the active settlement zone, usually 30 feet deep in Garden Grove's sandy profile. Our field crew installs each plate with a protective casing to avoid damage during construction. Common steps we follow:
Drill a 4-inch hole to the target depth
Place the plate on a leveled sand bed
Backfill with clean sand and compact in lifts
Connect the riser pipe and protective casing
Run a baseline survey with total station and optical level
When the soil is particularly loose, we cross-check the results with a resistividad eléctrica SEV survey to map subsurface variability before deciding where to place permanent monuments. This combined approach reduces uncertainty in the differential settlement analysis for every Garden Grove project.

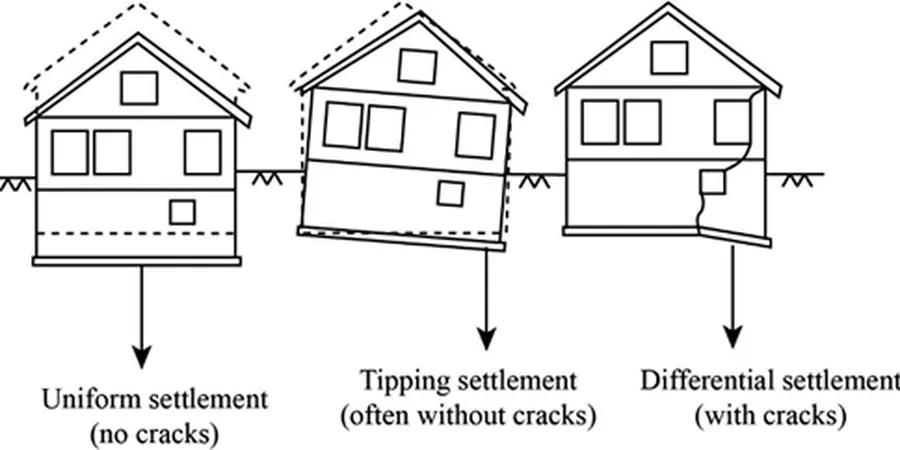

Technical reference image — Garden Grove
Local considerations
The California Building Code (CBC 2022, based on ASCE 7-22) requires that differential settlement not exceed 1 inch for shallow foundations on non-expansive soils. In Garden Grove, the combination of loose sand layers and a high water table means that even a 2-inch difference can crack a slab or tilt a retaining wall. We follow ASTM D2435 for consolidation tests and ASTM D4546 for swelling pressure, then compare measured values against the project's tolerance criteria. Skipping this analysis in Garden Grove's alluvial plain often leads to costly repairs later, especially near the river channel where soil variability is highest. Our differential settlement analysis identifies those critical zones before concrete is poured.
±0.01 ft (optical level) / ±0.001 ft (digital tiltmeter)
Maximum load per plate
5,000 lb (static water or sand bag method)
Data recording interval
Hourly (auto-logger) or weekly (manual survey)
Typical plate spacing
25–50 ft along foundation grid
Associated technical services
01
Settlement Plate Monitoring
We install and survey settlement plates at the foundation level, recording vertical movement during construction and post-construction to verify design assumptions.
02
Inclinometer Surveys
For slopes and deep excavations, we use inclinometer casings to detect lateral movement that could trigger differential settlement in adjacent structures.
03
Laboratory Consolidation Tests
We run one-dimensional consolidation (oedometer) tests on undisturbed samples to obtain compression index (Cc), recompression index (Cr), and preconsolidation pressure.
04
Numerical Modeling & Report
Using PLAXIS 2D or Settle3, we simulate the soil-structure interaction and provide a settlement contour map with recommendations for foundation depth or ground improvement.
How long does a differential settlement analysis take in Garden Grove?
A typical monitoring program runs 90 to 180 days, depending on the construction schedule and soil variability. We can start with baseline readings within one week of mobilizing to your site.
What is the difference between total settlement and differential settlement?
Total settlement is the vertical movement of a single point, while differential settlement is the difference in movement between two points. Differential settlement is more critical because it causes structural distortion and cracking.
What causes differential settlement in Garden Grove soils?
The main causes are loose sandy layers that compact under load, variable fill thickness across the site, and seasonal changes in the shallow groundwater table that affect effective stress.
How much does a differential settlement analysis cost in Garden Grove?
The cost typically ranges between US$640 and US$1,860 for a standard residential or small commercial project, depending on the number of monitoring points and duration. Larger projects with multiple plates and longer monitoring will cost more.
