With over 170,000 residents and a flat coastal plain underlain by alluvial soils from the Santa Ana River, Garden Grove presents specific challenges for soil reinforcement. Geogrid specification here must account for the sandy to silty profiles common across the city, where groundwater can sit as shallow as 3 meters. Defining the right geogrid type — uniaxial, biaxial, or triaxial — requires matching the aperture size and tensile modulus to the actual subgrade conditions, not just a catalog number. A proper study of soil mechanics clarifies the particle size distribution and plasticity index, which directly influence geogrid selection.
Geogrid specification is not a one-size-fits-all exercise. The soil beneath Garden Grove demands site-specific testing to avoid over- or under-design of the reinforcement.
Methodology and scope
Garden Grove grew rapidly in the 1950s and 60s, transforming from citrus groves into a dense suburban grid. That development pattern means many sites sit on undocumented fill or modified natural soils. A geogrid specification for road base or retaining wall backfill must verify the aggregate gradation against the geogrid aperture to prevent punch-through or clogging. The laboratory typically runs ASTM D6637 for wide-width tensile strength and ASTM D4759 for installation damage assessment. These tests feed directly into the allowable design strength used by the structural engineer. For projects involving steep slopes or MSE walls, we also correlate the ensayo triaxial data with the confinement requirements of the reinforcement layers.

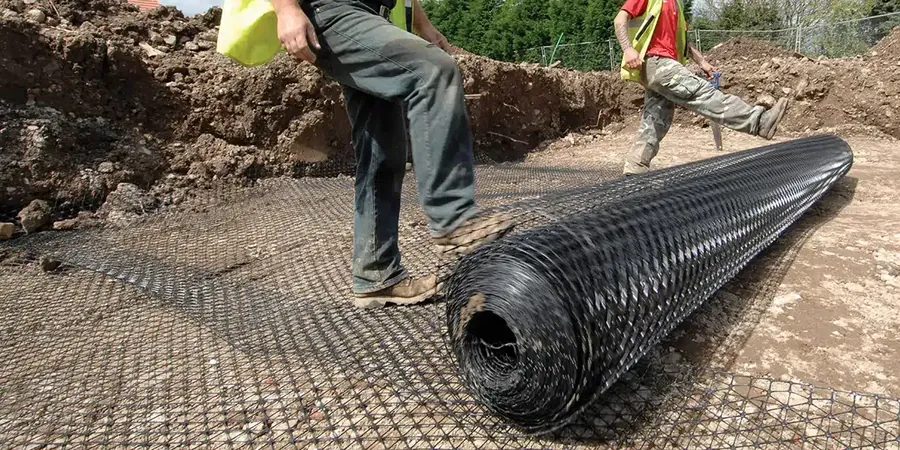

Technical reference image — Garden Grove
Local considerations
The alluvial sequence in Garden Grove includes loose sand layers interbedded with silt and clay. These materials can settle differentially if the geogrid specification ignores the subgrade modulus. A common failure occurs when biaxial geogrids are placed directly on soft clay without a separation layer, leading to mud pumping and loss of interlock. Worse, without checking the long-term creep behavior through ASTM D5262, the reinforcement may relax under sustained load. The risk multiplies near the Santa Ana River channel, where groundwater fluctuations can soften the foundation and reduce pullout capacity of the geogrid anchorage.
We analyze the project soil report and determine the required geogrid tensile strength, aperture, and polymer type (PET vs. PP). This includes creep reduction factors and installation damage allowances based on local aggregate sources.
02
Lab testing and index properties
We coordinate ASTM D6637 wide-width tensile tests, junction efficiency tests, and durability assessments (UV, chemical resistance). All testing is performed in our ISO 17025 accredited lab.
03
Installation specification and QA/QC
We prepare the construction specification including overlap lengths, anchoring details, and placement procedures. On-site verification includes roll inspection and tension monitoring during backfill.
Applicable standards
ASTM D6637 (Tensile properties of geogrids), ASTM D5262 (Creep testing of geosynthetics), ASTM D4759 (Installation damage evaluation), IBC 2021 Chapter 18 (Soils and foundations), AASHTO M 288 (Geotextile specification, cross-ref for geogrids)
Frequently asked questions
What is the difference between uniaxial and biaxial geogrids?
Uniaxial geogrids have high tensile strength in one direction and are used for retaining walls and steep slopes where the load is predominantly in one plane. Biaxial geogrids offer similar strength in both directions and are common for road base and foundation reinforcement under uniform loading. The choice depends on the dominant stress direction in your Garden Grove project.
How much does a geogrid specification service cost in Garden Grove?
The typical range for a complete geogrid specification service — including material selection, lab testing, and a written specification report — falls between US$460 and US$1.370. Final cost depends on the number of soil samples, test volume, and whether installation QA is required.
What ASTM tests are required for a geogrid specification?
The core tests are ASTM D6637 for wide-width tensile strength, ASTM D5262 for creep behavior, and ASTM D4759 for installation damage evaluation. For projects involving high groundwater, we also recommend ASTM D4716 for hydraulic transmissivity to ensure drainage compatibility.
Can geogrids be used on soft clay soils in Garden Grove?
Yes, but only with proper separation and confinement evaluation. Direct placement on soft clay can cause loss of interlock and mud pumping. A geotextile separator layer is usually specified beneath the geogrid, and the subgrade CBR should be verified before installation. We always run an ensayo CBR on the foundation layer to confirm it meets the minimum bearing requirement.
